66900 Series

Catalog

CONN RCPT 24P IDC 28-30AWG GOLD

...

Part	Contact Type	Features	Number of Rows	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Color	Mounting Type	Contact Finish	Wire Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Positions
Amphenol ICC (FCI) 66900-124	Female Socket	Feed Through	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	24
Amphenol ICC (FCI) 66900-034	Female Socket	Feed Through Strain Relief	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	34
Amphenol ICC (FCI) 66900-710LF	Female Socket	Closed End	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	10
Amphenol ICC (FCI) 66900-714	Female Socket	Closed End	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	14
Amphenol ICC (FCI) 66900-524	Female Socket	Closed End	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	24
Amphenol ICC (FCI) 66900-550	Female Socket	Closed End	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	50
Amphenol ICC (FCI) 66900-714LF	Female Socket	Closed End	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	14
Amphenol ICC (FCI) 66900-160	Female Socket	Feed Through	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	60

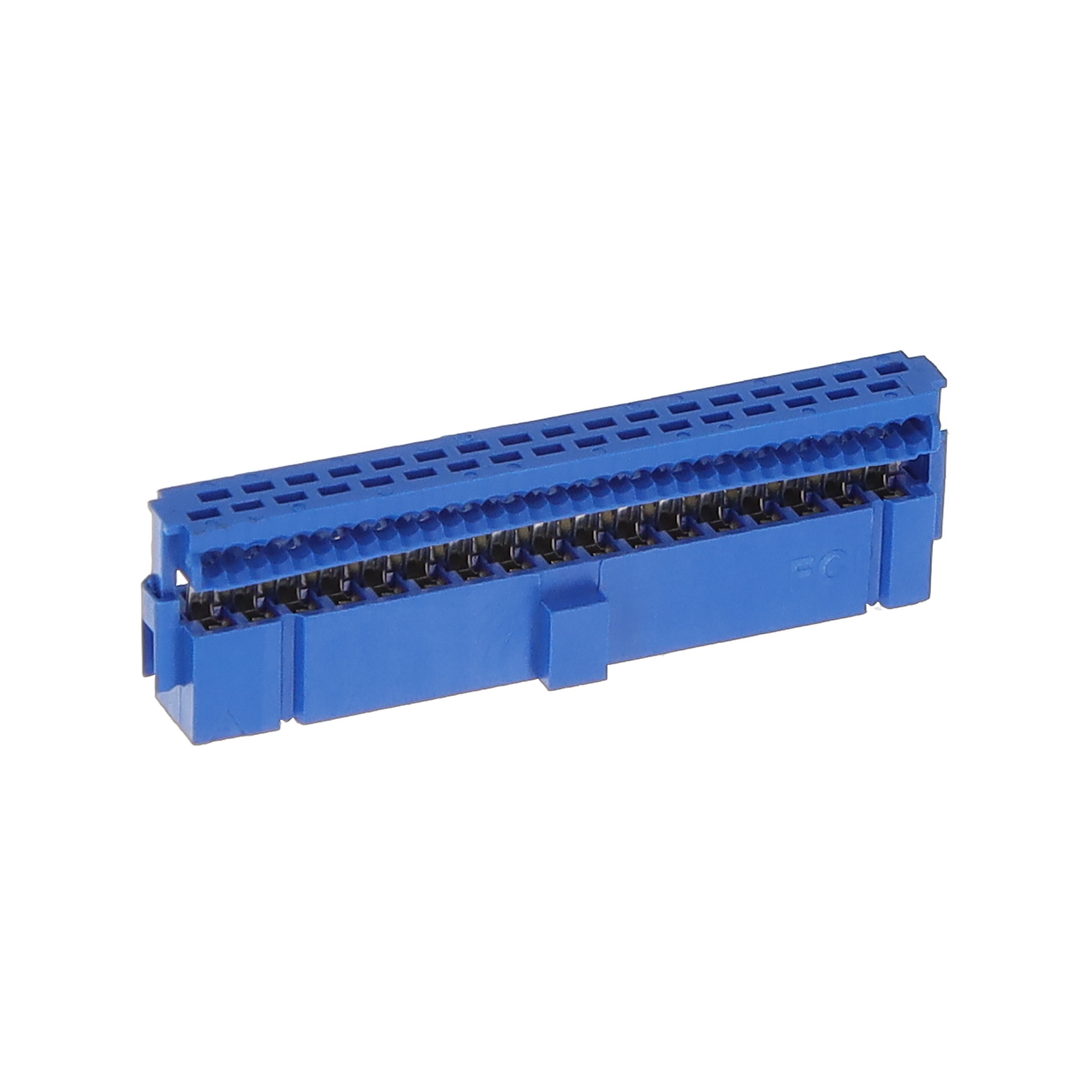

Amphenol ICC (FCI) 66900-234LF	Female Socket	Feed Through Polarizing Key Strain Relief	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	34
Amphenol ICC (FCI) 66900-314	Female Socket	Feed Through Polarizing Key	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Blue	Free Hanging (In-Line)	Gold GXT™	Ribbon Cable	Receptacle	0.76 Ám	30 Áin	IDC	30 AWG	27.5 AWG	14
