337-070 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 70POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Color	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Contact Finish	Termination	Number of Positions/Bay/Row	Contact Type	Mounting Type	Read Out	Gender	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Features

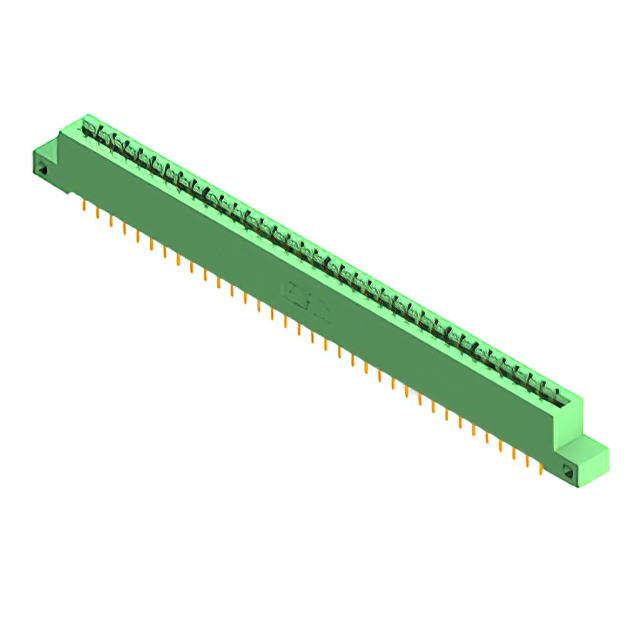

EDAC Inc. 337-070-540-212	Polyester Thermoplastic	2	Green	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-070-541-803	Polyester Thermoplastic	2	Green	Copper Alloy	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm

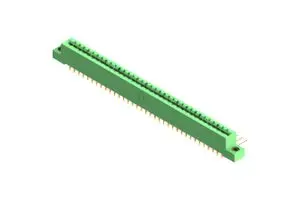

EDAC Inc. 337-070-559-208	Polyester Thermoplastic	2	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Right Angle Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm

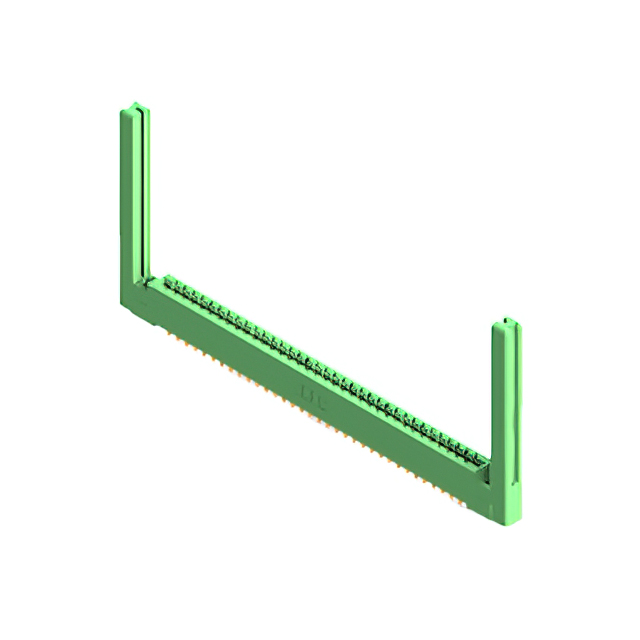

EDAC Inc. 337-070-555-258	Polyester Thermoplastic	2	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	Gold	Solder Eyelet(s)	35	Cantilever	Board Edge Straddle Mount	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender Card Guides
EDAC Inc. 337-070-555-868	Polyester Thermoplastic	2	Green	Copper Alloy	4-40 Threaded Insert Top Mount Opening			Non Specified - Dual Edge	Gold	Solder Eyelet(s)	35	Cantilever	Board Edge Straddle Mount	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender Card Guides
EDAC Inc. 337-070-542-212	Polyester Thermoplastic	2	Green	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-070-541-812	Polyester Thermoplastic	2	Green	Copper Alloy	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-070-542-201	Polyester Thermoplastic	2	Green	Copper Alloy				Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 337-070-556-268	Polyester Thermoplastic	2	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	Gold	Solder	35	Cantilever	Board Edge Straddle Mount	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender Card Guides
EDAC Inc. 337-070-544-803	Polyester Thermoplastic	2	Green	Copper Alloy	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Non Specified - Dual Edge	Gold	Wire Wrap	35	Cantilever	Through Hole	Dual	Female	3.96 mm	0.156 in	-40 C	105 ░C	0.25 Ám	10 Áin	2	70	0.07 in 1.78 mm	0.054 in 1.37 mm
