MMCX Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
CONN MMCX 0HZ TO 6GHZ 50OHM CRIMP ST CABLE MOUNT PL GOLD OVER NICKEL BULK
| Part | Frequency - Max [Max] | Fastening Type | Housing Color | Impedance | Connector Style | Center Contact Material | Number of Ports | Mounting Type | Shield Termination | Connector Type | Contact Termination | Cable Group | Cable Group | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Center Contact Plating | Body Material | Mating Cycles | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | 6000 MHz | Snap-On | Gold | 50 Ohms | MMCX | Beryllium Copper | 1 | Free Hanging (In-Line) | Crimp | Plug Male Pin | Crimp | 196 | RG-178 | ||||||||

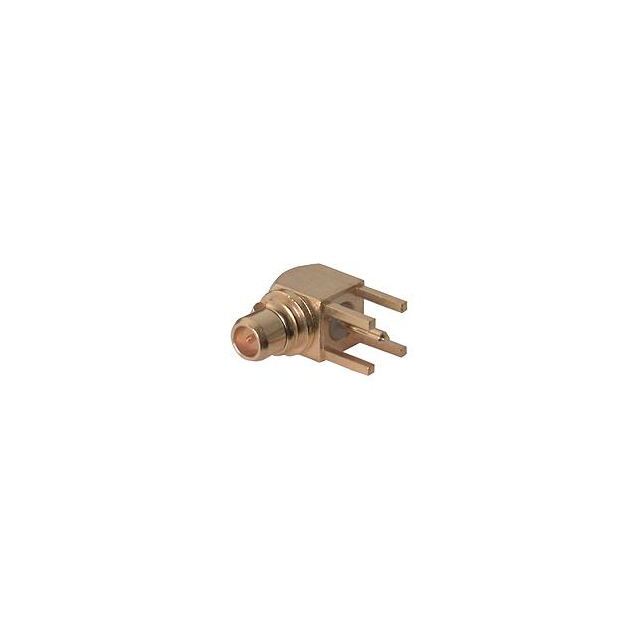

 Huber+Suhner, Inc. | 6000 MHz | Snap-On | Gold | 50 Ohms | MMCX | Beryllium Copper | 1 | Right Angle Through Hole | Solder | Plug Male Pin | Solder | 155 C | -55 C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 170 V | Gold | Brass | 500 | Gold |
