1460-9 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

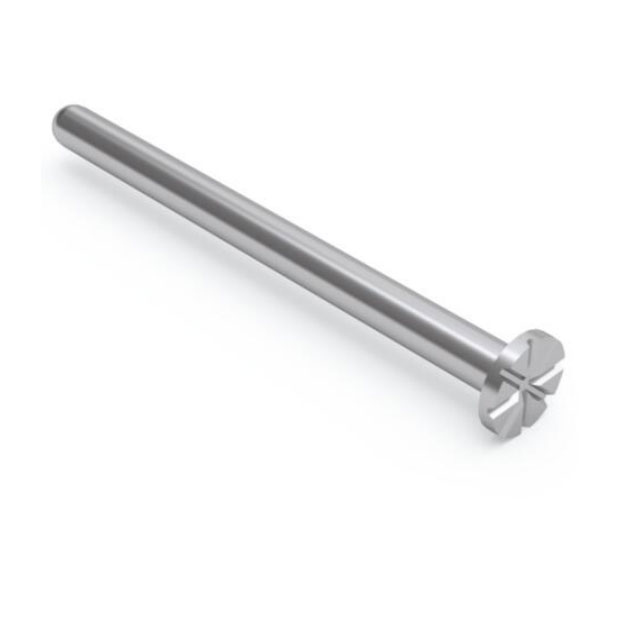

SURFACE MOUNT PIN, .800" LONG SL
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Pin Size - Above Flange | Pin Size - Above Flange | Terminal Style | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.64 " | 16.26 mm | 1.52 mm | 0.06 in | Single End | 1.52 mm | 0.06 in | 0.78 in | 19.81 mm | PC Pin | 20.32 mm | 0.8 " | 0.12 in | 3.05 mm | Surface Mount | 200 Áin | 5.08 Ám | Brass Alloy | Solder | Tin |
