32K101 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN SMA JACK STR 50OHM SOLDER
| Part | Dielectric Material | Center Contact Plating | Includes | Body Finish | Mating Cycles | Body Material | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Shield Termination | Fastening Type | Number of Ports | Cable Group | Center Contact Material | Impedance | Frequency - Max [Max] | Contact Termination | Mounting Type | Connector Style | Connector Type | Center Gender | Conversion Type | Mounting Feature | Convert From (Adapter End) | Adapter Series | Convert To (Adapter End) | Style | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

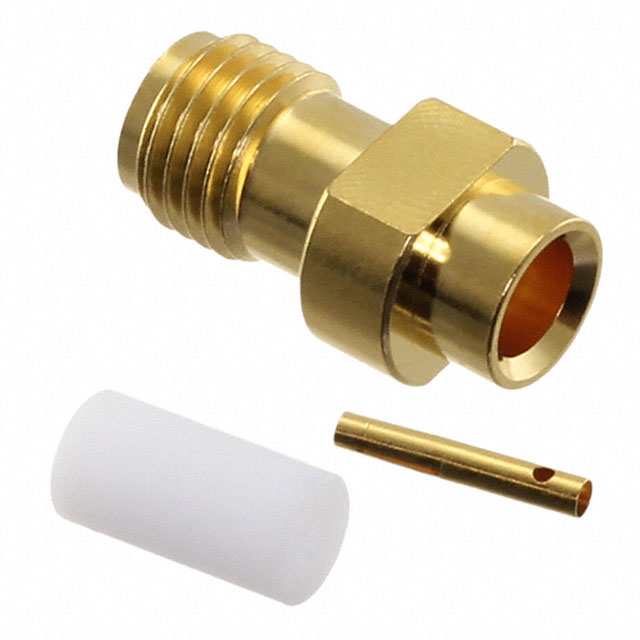

 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Contact 1 Insulator | Gold | 500 | Beryllium Copper | 480 V | 155 C | -55 C | Gold | Solder | Threaded | 1 | RG-405 (.085" Semi Rigid) | Beryllium Copper | 50 Ohms | 18 GHz | Solder | Free Hanging (In-Line) | SMA | Female Socket Jack | ||||||||

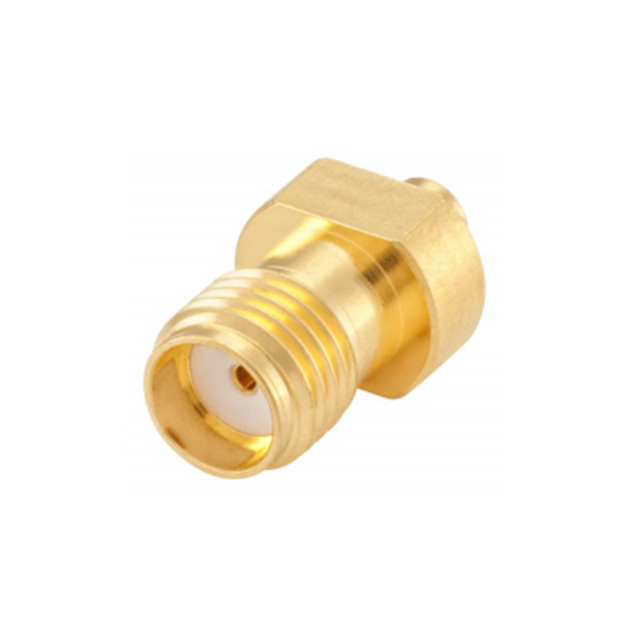

 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Contact 1 Insulator | Gold | 500 | Beryllium Copper | 480 V | 155 C | -55 C | Gold | Solder | Threaded | 1 | Beryllium Copper | 50 Ohms | 18 GHz | Solder | Free Hanging (In-Line) | SMA | Female Socket Jack | |||||||||

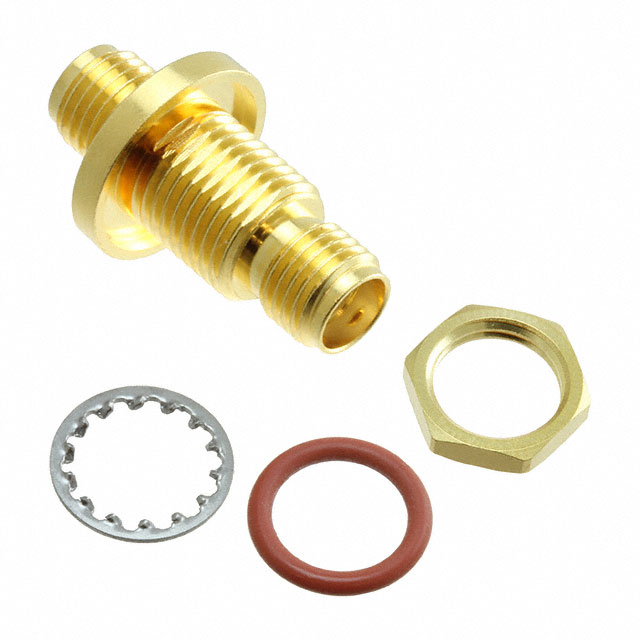

 Rosenberger | Polytetrafluoroethylene (PTFE) | Gold | 1 Connector 1 Lockwasher 1 Nut | Gold | 500 | Beryllium Copper Brass | 125 °C | -55 C | Beryllium Copper | 50 Ohms | 18 GHz | Panel Mount | Female to Female | Same Series | Bulkhead | Female Socket SMA Jack | SMA to SMA | SMA Jack Female Socket | Straight | Jack to Jack |
