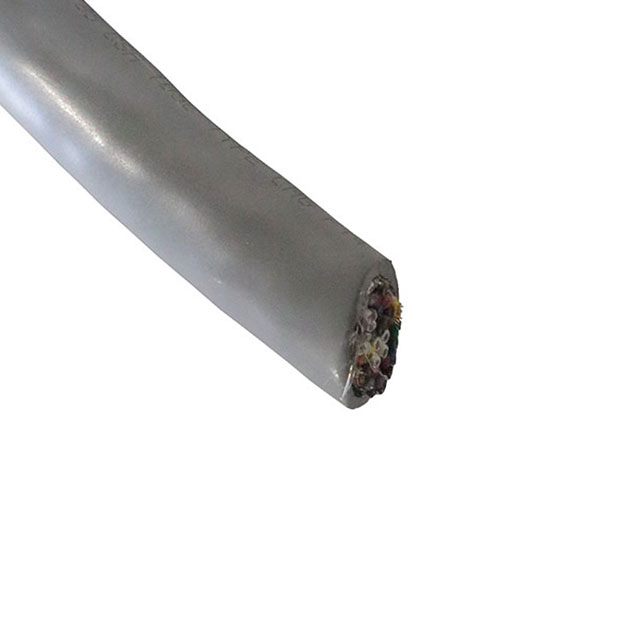

5354C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULT-PR 38COND 20AWG 1000=1000'
| Part | Shield Material | Shield Coverage | Voltage | Number of Conductors | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Shield Type | Conductor Insulation | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Features | Conductor Material | Usage | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 300 VDC | 38 | 20 AWG | 1.6 mm | 0.063 in | Multi-Pair | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.634 in | 16.1 mm | Slate | Braid Foil | Poly-Vinyl Chloride (PVC) | ISO 10993 | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | Communication Control | ||||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 300 VDC | 38 | 20 AWG | 1.6 mm | 0.063 in | Multi-Pair | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.634 in | 16.1 mm | Slate | Braid Foil | Poly-Vinyl Chloride (PVC) | ISO 10993 | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | Communication Control | 100 ft | 30.5 m | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 300 VDC | 38 | 20 AWG | 1.6 mm | 0.063 in | Multi-Pair | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.634 in | 16.1 mm | Slate | Braid Foil | Poly-Vinyl Chloride (PVC) | ISO 10993 | 28 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | Communication Control | 304.8 m | 1000 ft |
