146187 Series

Manufacturer: Molex

Catalog

WI-FI 6E PCB CABLED BALANCED ANTENNA, 9.00MM WIDTH, 150.00MM CABLE LENGTH, COMPATIBLE WITH U.FL / I-PEX MHF CONNECTORS

Part	Return Loss	Mounting Type	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Features	Frequency Group	Termination	Applications	Number of Bands	Height (Max) [z]	Height (Max) [z]	RF Family/Standard	Antenna Type	Gain	Features
Molex 1461870150	-10 dB	Surface Mount	2.4 GHz 5.5 GHz	2.4 GHz 5.15 GHz	2.48 GHz 5.85 GHz	Cable - 150mm	SHF UHF	U.FL	WLAN	2	0.004 in	0.1 mm	WiFi	PCB Trace
Molex 1461870250	-10 dB	Surface Mount	2.4 GHz 5.5 GHz	2.4 GHz 5.15 GHz	2.48 GHz 5.85 GHz		SHF UHF	U.FL	WLAN	2	0.004 in	0.1 mm	WiFi	PCB Trace	3.7 dBi

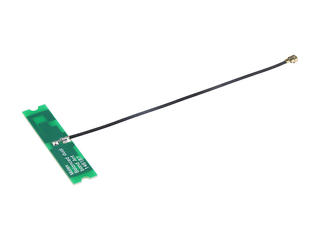

Molex 1461870100	-10 dB	Surface Mount	2.4 GHz 5.5 GHz	2.4 GHz 5.15 GHz	2.48 GHz 5.85 GHz	Cable	SHF UHF	U.FL	WLAN	2	0.004 in	0.1 mm	WiFi	PCB Trace	4.5 dBic	100 mm
Molex 1461870200	-10 dB	Surface Mount	2.4 GHz 5.5 GHz	2.4 GHz 5.15 GHz	2.48 GHz 5.85 GHz	Cable - 200mm	SHF UHF	U.FL	WLAN	2	0.004 in	0.1 mm	WiFi	PCB Trace	4 dBi

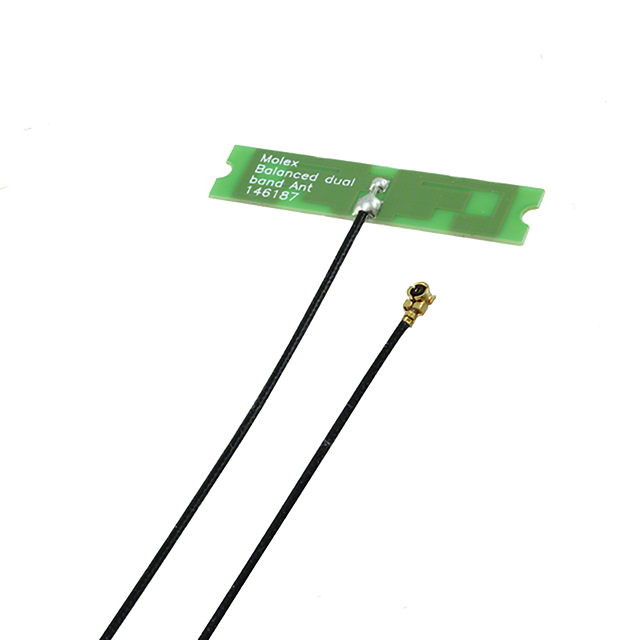

Molex 1461870300	-10 dB	Surface Mount	2.4 GHz 5.5 GHz	2.4 GHz 5.15 GHz	2.48 GHz 5.85 GHz	Cable - 300mm	SHF UHF	U.FL	WLAN	2	0.004 in	0.1 mm	WiFi	PCB Trace	3.5 dBi
