R16447 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

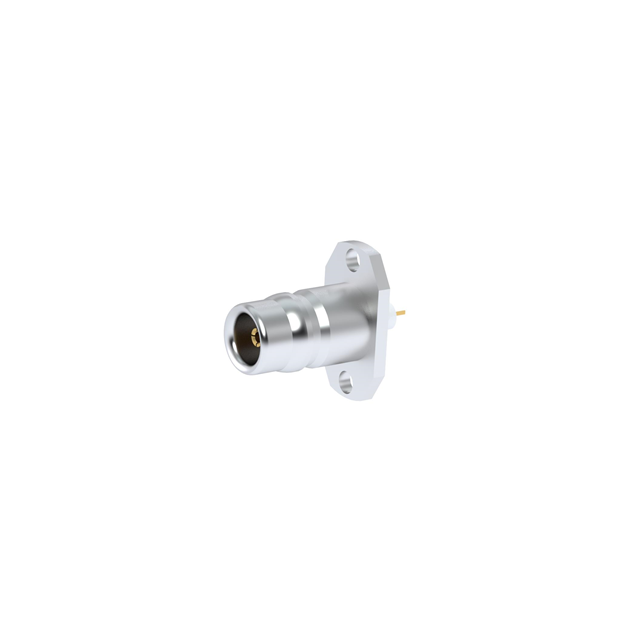

QN / 2 HOLE REDUCED FLANGE RECEP
| Part | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Body Finish | Connector Style | Mounting Feature | Ingress Protection | Features | Impedance | Center Contact Material | Fastening Type | Connector Type | Contact Termination | Housing Color | Number of Ports | Frequency - Max [Max] | Mounting Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | 1000 VDC | Silver | QN | Flange | IP68 - Dust Tight Waterproof | Extended Insulation | 50 Ohms | Beryllium Copper | Snap-On | Receptacle Female Socket | Solder | Silver | 1 | 6000 MHz | Panel Mount Through Hole | Solder |
