UPD2425 Series
Manufacturer: Sensata-Crydom
Beta
⌘K
SSR RELAY SPST-NO 25A 24-280V
| Part | Supplier Device Package | Package / Case | Voltage - Load [Min] | Voltage - Load [Max] | Termination Style | Voltage - Input [Min] | Voltage - Input [Max] | Load Current | Output Type | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

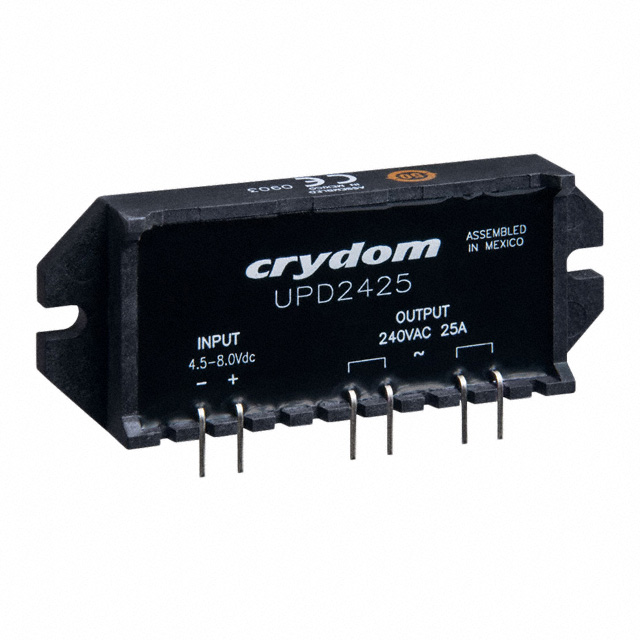

 Sensata-Crydom | 6-SIP | 6-SIP | 24 V | 280 V | PC Pin | 3 V | 32 VDC | 25 A | AC | CE cURus | 80 °C | -40 C | Through Hole |

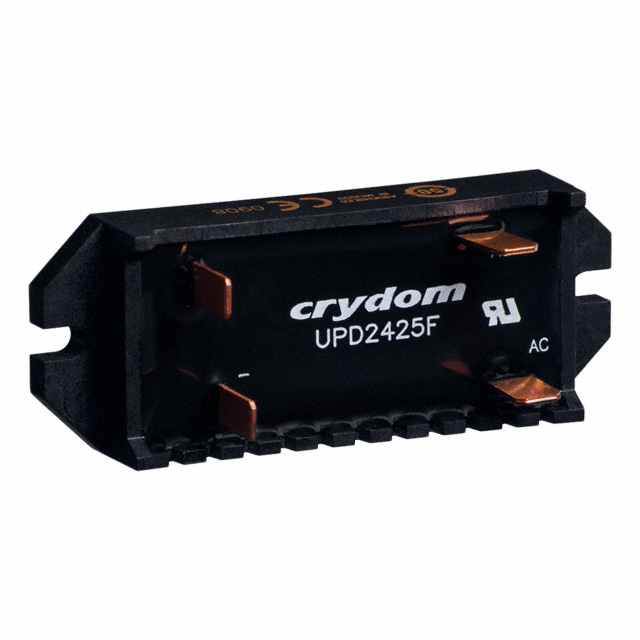

 Sensata-Crydom | Module | 24 V | 280 V | Quick Connect - 0.250" (6.3mm) | 3 V | 32 VDC | 25 A | AC Zero Cross | CE cURus | 80 °C | -40 C | Chassis Mount | |
Sensata-Crydom | Module | 24 V | 280 V | Quick Connect - 0.250" (6.3mm) | 3 V | 32 VDC | 25 A | AC | CE cURus | 80 °C | -40 C | Chassis Mount |
