075117 Series
Manufacturer: Molex
Beta
⌘K

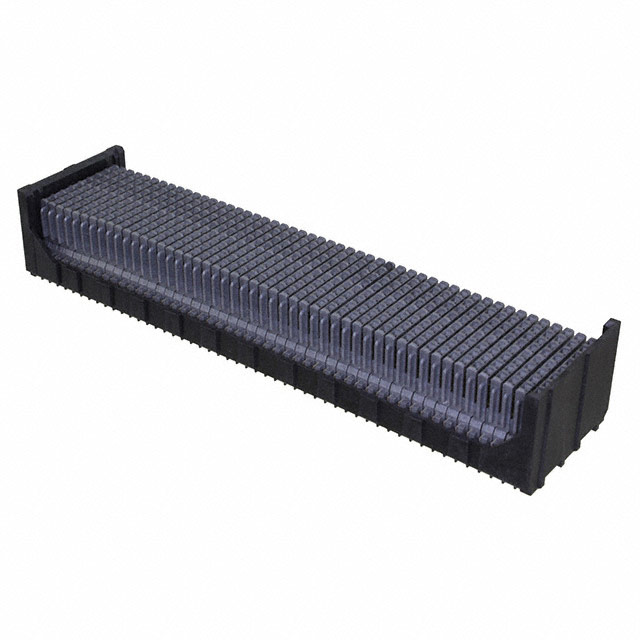

CONN VHDM RCP 80 POS 1MM PRESS FIT ST THRU-HOLE VHDM® TUBE
| Part | Contact Finish | Connector Type | Number of Positions | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Termination | Number of Positions Loaded | Connector Style | Number of Columns | Features | Mounting Type | Color | Number of Rows | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Gold | Receptacle Female Sockets | 80 | UL94 V-0 | 105 ░C | -55 °C | 0.079 in | 2 mm | Press-Fit | All | VHDM | 10 | Stackable | Through Hole | Black | 8 | ||
Molex | Gold | Receptacle Female Sockets | UL94 V-0 | 105 ░C | -55 °C | 0.079 in | 2 mm | Press-Fit | All | VHDM | 25 columns | Stackable | Through Hole | Black | 8 | |||
Molex | Gold | Receptacle Female Sockets | 400 | UL94 V-0 | 105 ░C | -55 °C | 0.079 in | 2 mm | Press-Fit | All | VHDM | Stackable | Through Hole | Black | 8 | 0.76 Ám | 30 Áin | |
 Molex | Gold | Receptacle Female Sockets | 400 | UL94 V-0 | 105 ░C | -55 °C | 0.079 in | 2 mm | Press-Fit | All | VHDM | 50 | Stackable | Through Hole | Black | 8 |
