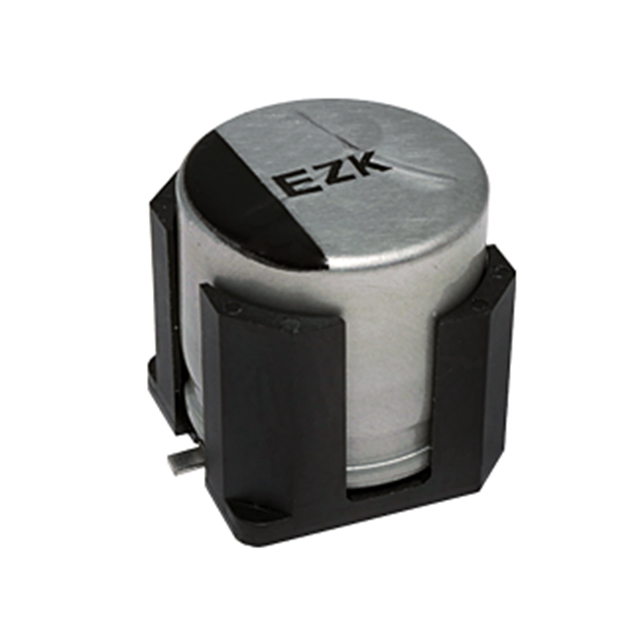

EEH-ZKE Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUMHYB 180UF 20% 25V SMD
| Part | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Type | Lifetime @ Temp. | Mounting Type | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Ripple Current @ High Frequency | Capacitance | Ripple Current @ Low Frequency | Voltage - Rated | ESR (Equivalent Series Resistance) | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 20 % | 8.3 mm | 0.327 in | Hybrid | 4000 Hrs | Surface Mount | Radial Can - SMD | 0.248 in | 6.3 mm | -55 °C | 125 °C | Automotive | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | 1.8 A | 180 çF | 270 mA | 25 VDC | 30 mOhms | AEC-Q200 |
 Panasonic Industrial Automation Sales | 20 % | 8 mm | 0.315 in | Hybrid | 4000 Hrs | Surface Mount | Radial Can - SMD | 0.248 in | 6.3 mm | -55 °C | 125 °C | Automotive | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | 1.8 A | 180 çF | 270 mA | 25 VDC | 30 mOhms | AEC-Q200 |
