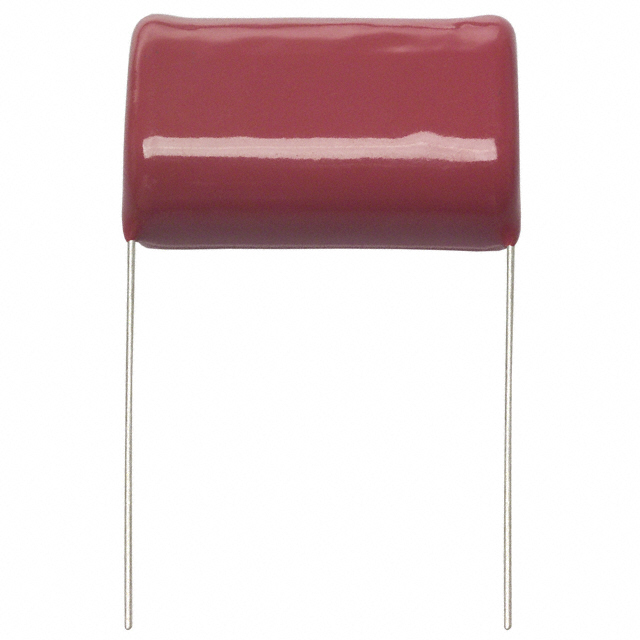

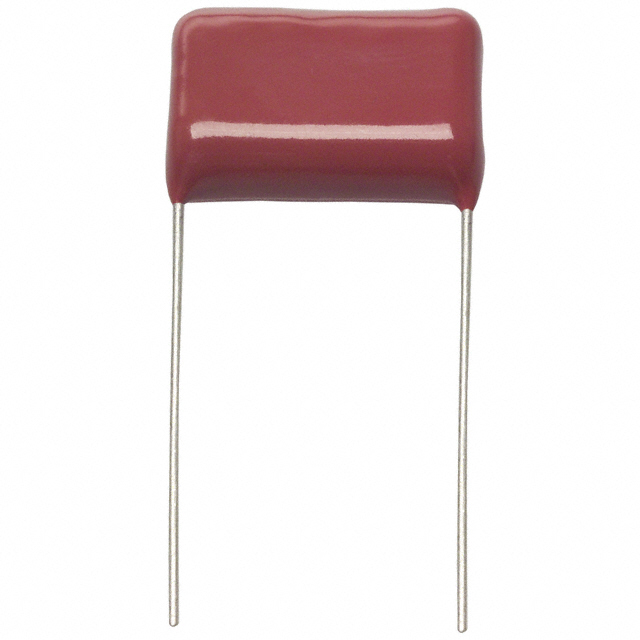

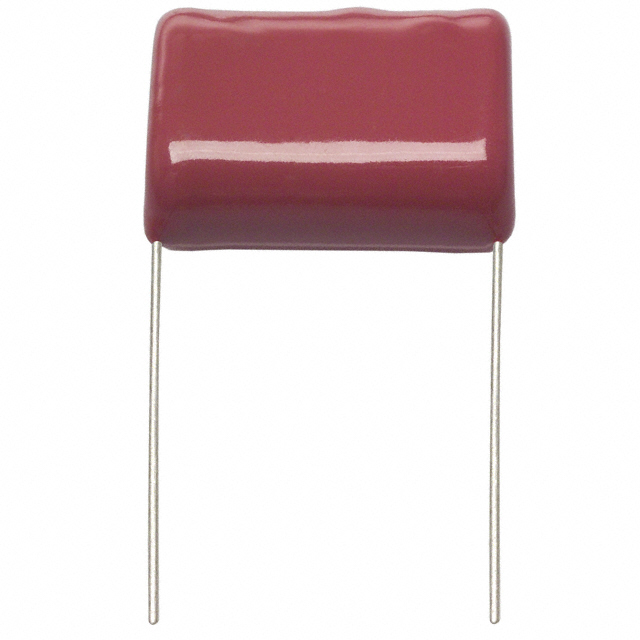

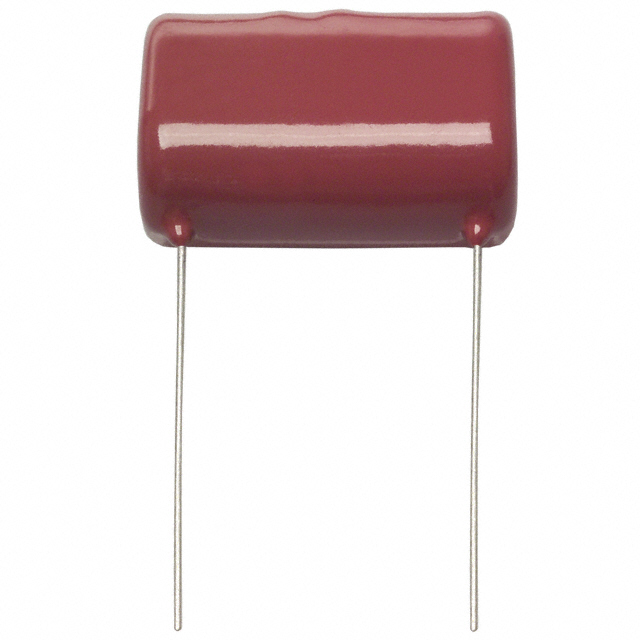

ECH-A Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 3UF 5% 220VAC RADIAL

Part	Capacitance	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Package / Case	Mounting Type	Tolerance	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECH-A22305JX	3 µF	Motor Run	27.5 mm	1.083 in	1.063 in	27 mm	220 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.24 in	31.5 mm	0.61 in	15.5 mm
Panasonic Industrial Automation Sales ECH-A18505JX	5 µF	Motor Run	27.5 mm	1.083 in	1.102 in	28 mm	180 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.24 in	31.5 mm	0.65 in	16.5 mm
Panasonic Industrial Automation Sales ECH-A22105JX	1 µF	Motor Run	22.5 mm	0.886 in			220 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.043 in	26.5 mm	0.394 in	10 mm	21.5 mm	0.846 in
Panasonic Industrial Automation Sales ECH-A22505JX	5 µF	Motor Run	32.5 mm	1.28 in	1.161 in	29.5 mm	220 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.457 in	37 mm	0.709 "	18 mm
Panasonic Industrial Automation Sales ECH-A18305JX	3 µF	Motor Run	22.5 mm	0.886 in	1.024 in	26 mm	180 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.043 in	26.5 mm	0.551 in	14 mm
Panasonic Industrial Automation Sales ECH-A22405JX	4 µF	Motor Run	32.5 mm	1.28 in	1.083 in	27.5 mm	220 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.457 in	37 mm	0.63 in	16 mm
Panasonic Industrial Automation Sales ECH-A25205JX	2 µF	Motor Run	27.5 mm	1.083 in	1.043 in	26.5 mm	250 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.24 in	31.5 mm	0.591 in	15 mm
Panasonic Industrial Automation Sales ECH-A25605JX	6 µF	Motor Run	30 mm	1.181 in	1.339 in	34 mm	250 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.594 in	40.5 mm	0.866 in	22 mm
Panasonic Industrial Automation Sales ECH-A25305JX	3 µF	Motor Run	32.5 mm	1.28 in	1.102 in	28 mm	250 V	Radial	Through Hole	5 %	PC Pins	70 °C	-25 °C	1.457 in	37 mm	0.65 in	16.5 mm
