32S207 Series
Manufacturer: Rosenberger
Beta
⌘K

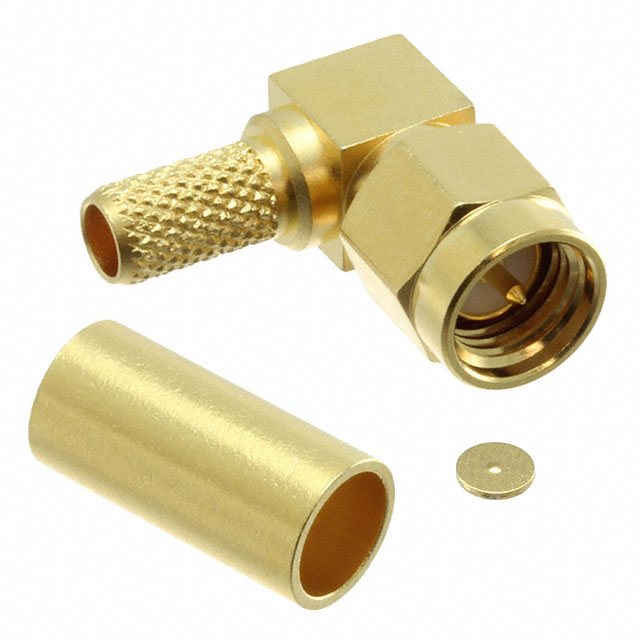

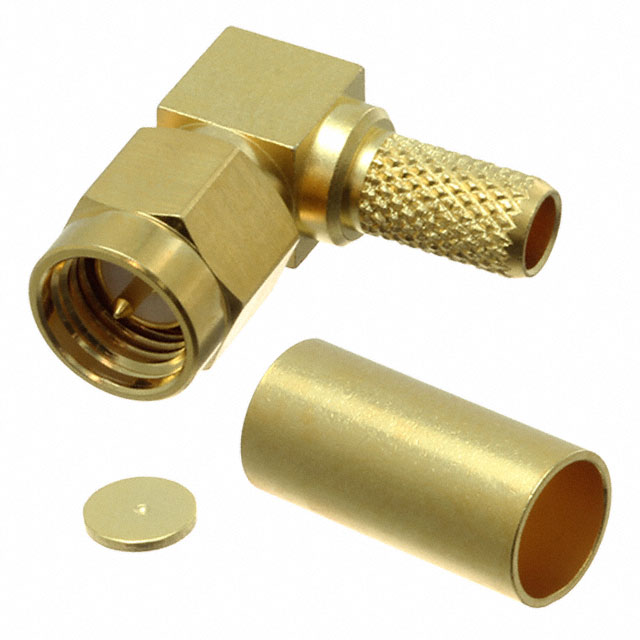

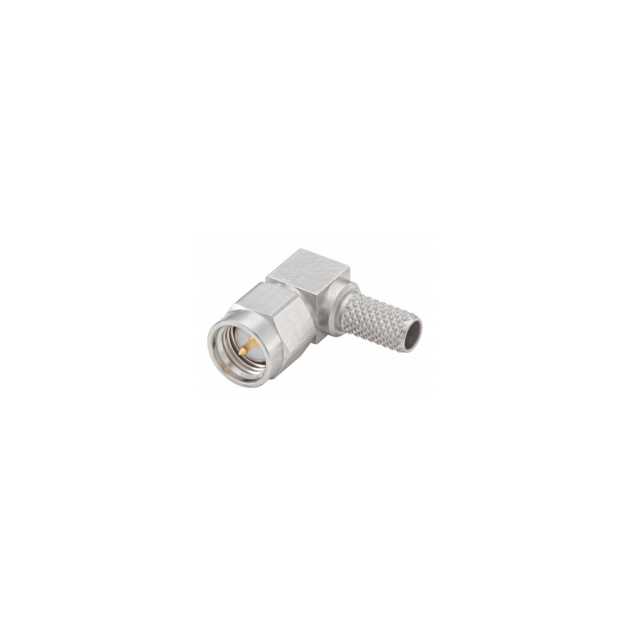

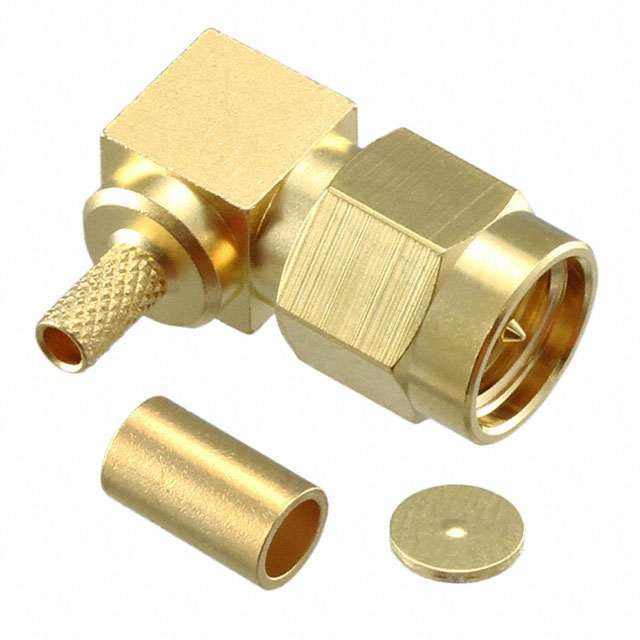

CONN SMA PLUG R/A 50OHM SOLDER
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Body Material | Voltage Rating | Includes | Center Contact Plating | Number of Ports | Cable Group | Cable Group | Fastening Type | Connector Style | Impedance | Connector Type | Contact Termination | Mounting Type | Frequency - Max [Max] | Center Contact Material | Shield Termination | Housing Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Beryllium Copper Brass | 480 V | 1 Connector 1 End Cap 1 Ferrule | Gold | 1 | 223 400 | RG-142B | Threaded | SMA | 50 Ohms | Plug Male Pin | Solder | Free Hanging (In-Line) Right Angle | 12.4 GHz | Brass | Crimp | Gold | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Beryllium Copper Brass | 480 V | 1 Connector 1 End Cap 1 Ferrule | Gold | 1 | 141 RG-58C | Threaded | SMA | 50 Ohms | Plug Male Pin | Solder | Free Hanging (In-Line) Right Angle | 12.4 GHz | Brass | Crimp | Gold | ||
 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | White Bronze | Beryllium Copper Brass | 480 V | Gold | 1 | 223 400 | RG-142B | Threaded | SMA | 50 Ohms | Plug Male Pin | Solder | Free Hanging (In-Line) Right Angle | 12.4 GHz | Brass | Crimp | Silver | Bulkhead | |
 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Beryllium Copper Brass | 480 V | 1 Connector 1 End Cap 1 Ferrule | Gold | 1 | 188A 316 RG-174A | Threaded | SMA | 50 Ohms | Plug Male Pin | Solder | Free Hanging (In-Line) Right Angle | 12.4 GHz | Brass | Crimp | Gold | ||
 Rosenberger | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Gold | Beryllium Copper Brass | 480 V | 1 Connector 1 End Cap 1 Ferrule | Gold | 1 | RG-316 | Threaded | SMA | 50 Ohms | Plug Male Pin | Solder | Free Hanging (In-Line) Right Angle | 12.4 GHz | Brass | Crimp | Gold |
