SFV27R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

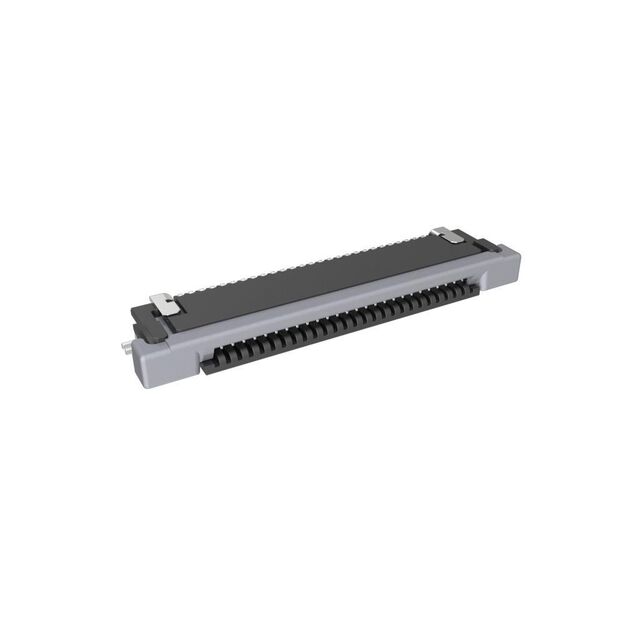

CONN FFC FPC TOP 27POS 0.5MM R/A
| Part | Actuator Color | Mating Cycles | Current Rating (Amps) | Housing Color | Contact Material | FFC, FCB Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Height Above Board [z] | Height Above Board [z] | Cable End Type | Material Flammability Rating | Actuator Material | Pitch | Pitch | Number of Positions | Connector/Contact Type | Voltage Rating | Housing Material | Termination | Locking Feature | Contact Finish | Mounting Type | Flat Flex Type | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | 0.33 mm | -55 C | 105 ░C | 0.071 in | 1.8 mm | Tapered | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Top | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Tin | Right Angle Surface Mount | FFC FPC | |||
 Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | 0.071 in | 1.8 mm | Notched Tapered | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Bottom | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Flip Lock Slide Lock | Tin | Right Angle Surface Mount | FPC | |||
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Phosphor Bronze | -55 C | 105 ░C | 0.071 in | 1.8 mm | Straight Tapered | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Bottom | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Tin | Right Angle Surface Mount | FFC FPC | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | -55 C | 105 ░C | 0.071 in | 1.8 mm | Notched | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Top | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Tin | Right Angle Surface Mount | FPC | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | 0.02 " | 0.5 mm | 27 | Solder | Right Angle Surface Mount | ||||||||||||||||||||||
Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | -55 C | 105 ░C | 0.071 in | 1.8 mm | Tapered | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Bottom | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Gold | Right Angle Surface Mount | FFC FPC | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
 Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | -55 C | 105 ░C | 0.071 in | 1.8 mm | Notched | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Top | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Gold | Right Angle Surface Mount | FPC | 0.3 mm | 0.33 mm | ||
Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | -55 C | 105 ░C | 0.071 in | 1.8 mm | Notched | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Top | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Gold | Right Angle Surface Mount | FFC FPC | 0.3 mm | 0.33 mm | ||
Amphenol ICC (FCI) | Brown | 20 | 0.5 A | Black | Phosphor Bronze | 0.3 mm | -55 C | 105 ░C | 0.071 in | 1.8 mm | Tapered | UL94 V-0 | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | 27 | Contacts Top | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Solder | Slide Lock | Gold | Right Angle Surface Mount | FFC FPC | Solder Retention Zero Insertion Force (ZIF) |
