770565 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

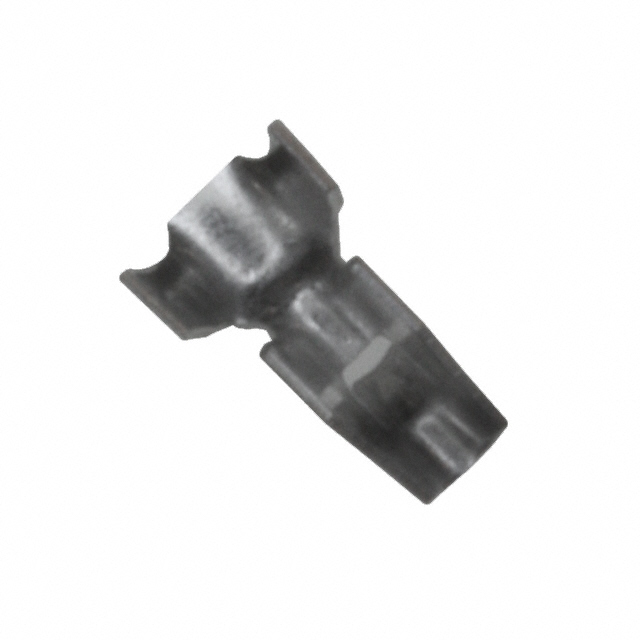

CONTACT SKT CRIMP ST CABLE MOUNT 18-22AWG T/R
| Part | Terminal Type | Contact Finish | Contact Material | Hole Diameter [Max] | Hole Diameter [Min] | Hole Diameter [Min] | Hole Diameter [Max] | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Through Board Locking | Tin | Phosphor Bronze | 0.077 " | 0.072 " | 1.83 mm | 1.96 mm | 0.22 in | 5.59 mm | 22 AWG | 17.5 AWG | 0.06 in | 1.52 mm | 0.11 " | 2.79 mm |
 TE Connectivity AMP Connectors | Through Board Locking | Tin-Lead | Phosphor Bronze | 0.077 " | 0.072 " | 1.83 mm | 1.96 mm | 0.22 in | 5.59 mm | 22 AWG | 17.5 AWG | 0.06 in | 1.52 mm | 0.11 " | 2.79 mm |
