ID25S33 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

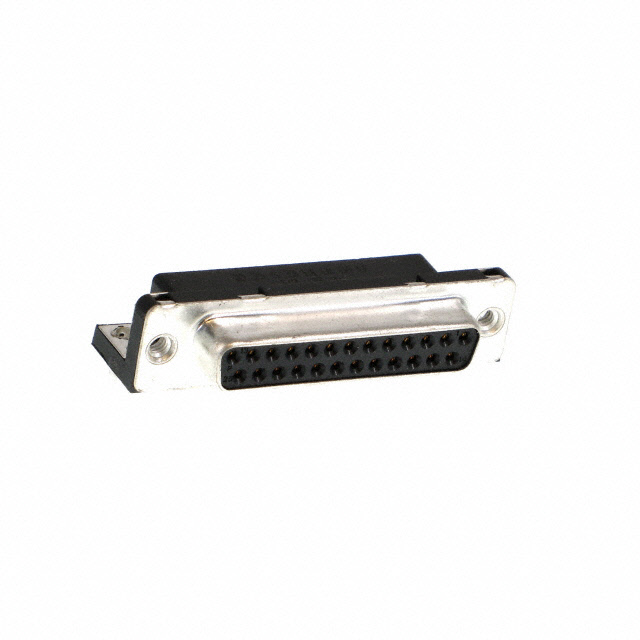

CONN D-SUB RCPT 25POS R/A SLDR
| Part | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Finish | Contact Finish Thickness | Connector Style | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Rows [custom] | Mounting Type | Termination | Features | Material Flammability Rating | Contact Type | Backset Spacing | Backset Spacing | Current Rating (Amps) | Connector Type | Flange Feature | Flange Feature | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | Flash | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock Mounting Brackets | UL94 V-0 | Signal | 8.08 mm | 0.318 " | 5 A | Receptacle Female Sockets | Housing/Shell | 4-40 | ||
Amphenol ICC (FCI) | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock | Signal | 5 A | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | ||||||
Amphenol ICC (FCI) | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | Flash | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock | Signal | 5 A | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | |||||||
Amphenol ICC (FCI) | Copper Alloy | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock Mounting Brackets | UL94 V-0 | Signal | 8.08 mm | 0.318 " | 5 A | Receptacle Female Sockets | Housing/Shell | 4-40 | |||
Amphenol ICC (FCI) | Copper Alloy | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | Flash | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Mounting Brackets | UL94 V-0 | Signal | 8.08 mm | 0.318 " | 5 A | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | |||
Amphenol ICC (FCI) | Copper Alloy | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | Flash | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock Mounting Brackets | UL94 V-0 | Signal | 8.08 mm | 0.318 " | 5 A | Receptacle Female Sockets | Housing/Shell | 4-40 | ||
 Amphenol ICC (FCI) | Copper Alloy | 300 VDC | -55 C | 125 °C | Polyester | Black | Gold | Flash | D-Sub | 25 | B DB | 3 | 2 | Right Angle Through Hole | Solder | Board Lock Mounting Brackets | UL94 V-0 | Signal | 8.08 mm | 0.318 " | 5 A | Receptacle Female Sockets | Housing/Shell | 4-40 |
