PEM2-S24 Series
Manufacturer: CUI Inc.
Beta
⌘K

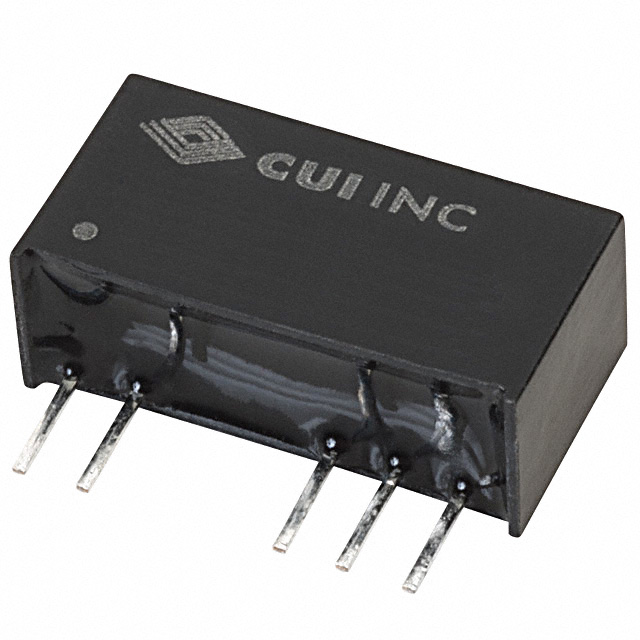

MODULE DC-DC 24VIN 2-OUT -15V/15V -0.067A/0.067A 2W 5-PIN SIP
| Part | Power (Watts) | Efficiency | Features | Package / Case | Voltage - Output 2 | Type | Voltage - Input (Min) [Min] | Voltage - Output 1 | Approval Agency | Number of Outputs | Voltage - Isolation | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Max) [Max] | Mounting Type | Standard Number | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 2 W | 84 % | SCP | 7-SIP Module 5 Leads | -15 V | Isolated Module | 21.6 V | 15 V | CB Scheme EN IEC UL | 2 | 3000 V | ITE (Commercial) | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | 26.4 V | Through Hole | 55024 55032 Class A 60950-1 | -40 C | 105 ░C | 66.6 mA | 66.6 mA | ||
 CUI Inc. | 2 W | 84 % | SCP | 14-DIP Module 6 Leads | Isolated Module | 21.6 V | 5 V | CB Scheme EN IEC UL | 1 | 3000 V | ITE (Commercial) | 0.32 " | 0.39 in | 20.1 mm | 9.9 mm | 0.79 " | 8.2 mm | 26.4 V | Through Hole | 55024 55032 Class A 60950-1 | -40 C | 105 ░C | 400 mA | ||||

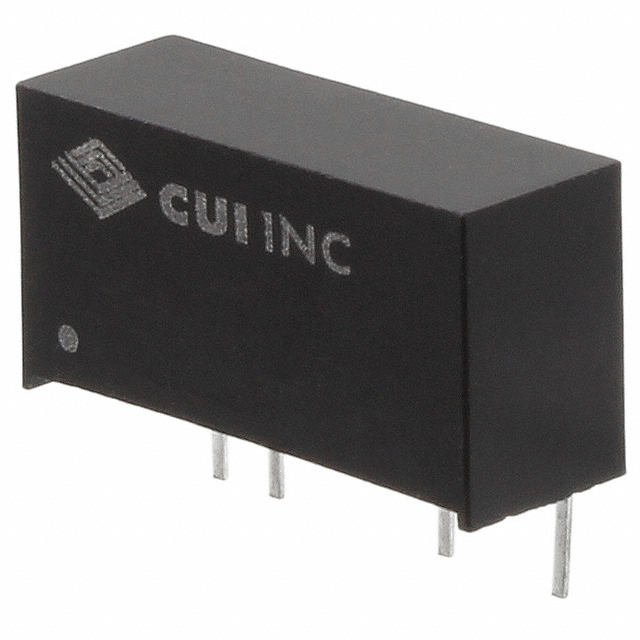

 CUI Inc. | 2 W | 85 % | SCP | 7-SIP Module 4 Leads | Isolated Module | 21.6 V | 24 V | CB Scheme EN IEC UL | 1 | 3000 V | ITE (Commercial) | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | 26.4 V | Through Hole | 55024 55032 Class A 60950-1 | -40 C | 105 ░C | 83.3 mA | ||||
 CUI Inc. | 2 W | 84 % | SCP | 14-DIP Module 6 Leads | -12 V | Isolated Module | 21.6 V | 12 V | CB Scheme EN IEC UL | 2 | 3000 V | ITE (Commercial) | 0.32 " | 0.39 in | 20.1 mm | 9.9 mm | 0.79 " | 8.2 mm | 26.4 V | Through Hole | 55024 55032 Class A 60950-1 | -40 C | 105 ░C | 83 mA | 83 mA |
