073413 Series
Manufacturer: Molex
Beta
⌘K
CONN SSMCX JACK STR 50 OHM SMD
| Part | Impedance | Fastening Type | Contact Termination | Body Material | Connector Style | Dielectric Material | Number of Ports | Body Finish | Center Contact Material | Voltage Rating | Mounting Type | Center Contact Plating | Shield Termination | Frequency - Max [Max] | Housing Color | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Cable Group | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 50 Ohms | Snap-On | Solder | Brass | SSMCX | Polytetrafluoroethylene (PTFE) | 1 | Gold | Beryllium Copper | 170 V | Surface Mount | Gold | Solder | 6000 MHz | Gold | Female Socket Jack | 155 °C | -55 °C | |||
Molex | 50 Ohms | Snap-On | Solder | Brass | SSMCX | Polytetrafluoroethylene (PTFE) | 1 | Gold | Brass | 170 V | Free Hanging (In-Line) Right Angle | Gold | Solder | 6000 MHz | Gold | Male Pin Plug | 155 °C | -55 °C | Coaxial Cable | 1.32 mm | 1 Connector 1 End Cap |

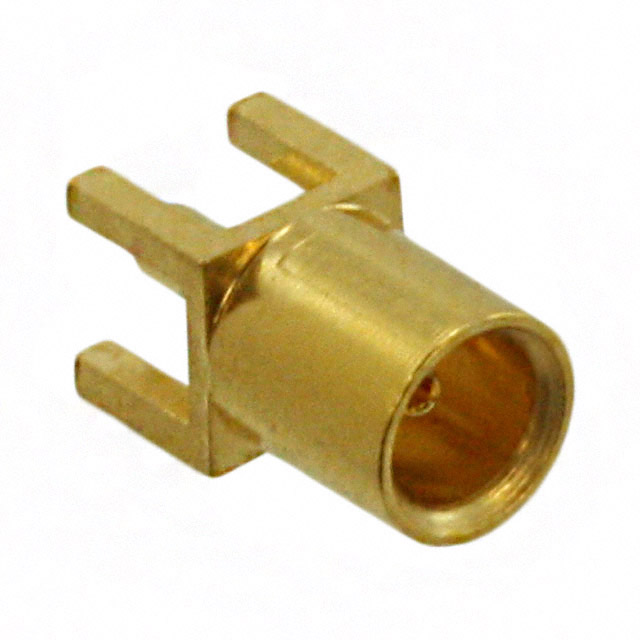

 Molex | 50 Ohms | Snap-On | Solder | Brass | SSMCX | Polytetrafluoroethylene (PTFE) | 1 | Gold | Beryllium Copper | 170 V | Through Hole | Gold | Solder | 6000 MHz | Gold | Female Socket Jack | 155 °C | -55 °C | |||
Molex | 50 Ohms | Snap-On | Solder | Brass | SSMCX | Polytetrafluoroethylene (PTFE) | 1 | Gold | Beryllium Copper | 170 V | Gold | Solder | 6000 MHz | Gold | Female Socket Jack |
