1327A Series
Manufacturer: Belden Inc.
Beta
⌘K

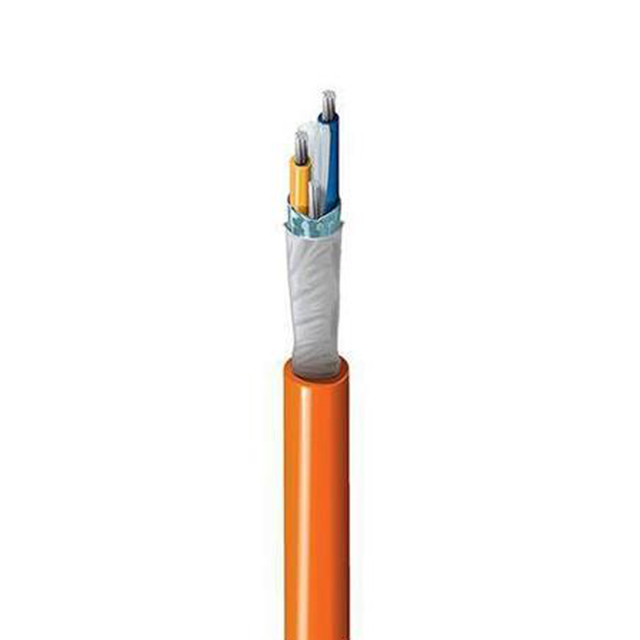

MULTI-PAIR 4COND 18AWG BLU
| Part | Shield Material | Shield Coverage | Features | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Voltage | Number of Conductors | Cable Type | Jacket (Insulation) Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Drain Wire Oil Resistant | Polyolefin | PO | 11.18 mm | 0.44 " | Foil | 300 VDC | 4 | Multi-Pair | Poly-Vinyl Chloride (PVC) | Blue | -40 C | 105 ░C | 18 AWG | 26 AWG | 7 | Copper Tinned | 304.8 m | 1000 ft |
