06FMN-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

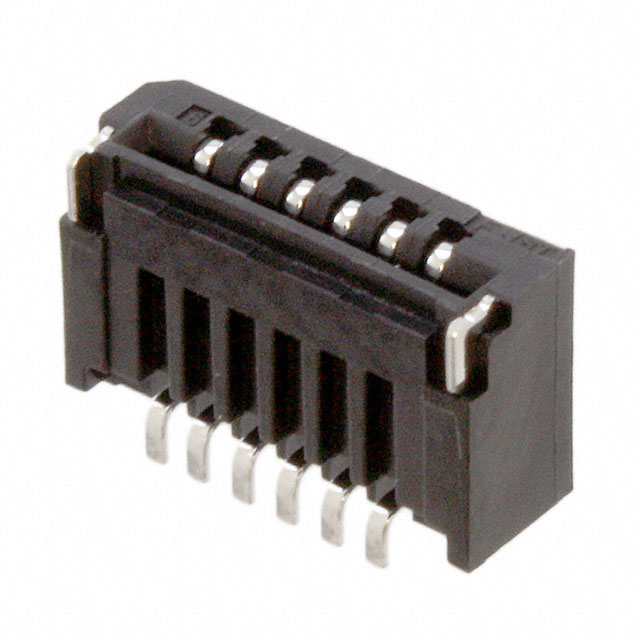

CONN FFC TOP 6POS 1MM R/A
| Part | Current Rating (Amps) | Housing Color | Number of Positions | Features | Pitch | Pitch | Connector/Contact Type | Contact Material | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | FFC, FCB Thickness | Mounting Type | Housing Material | Termination | Contact Finish | Voltage Rating | Height Above Board [z] | Height Above Board [z] | Cable End Type | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.5 A | Black | 6 | Low Insertion Force (LIF) | 1 mm | 0.039 in | Contacts Top | Phosphor Bronze | UL94 V-0 | 85 °C | -25 °C | 0.3 mm | Right Angle Surface Mount | Nylon 6T Polyamide (PA6T) | Solder | Tin | 50 V | 0.118 in | 3 mm | Straight | FFC |
