PN22 Series

Catalog

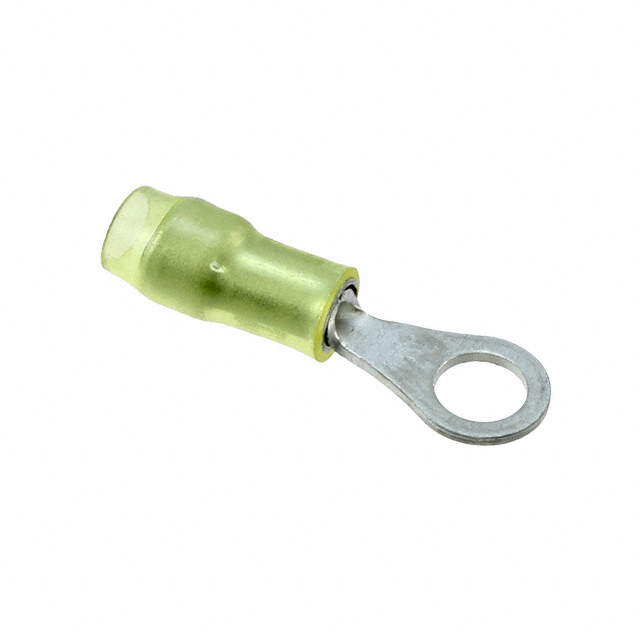

RING TERMINAL, NYLON INSULATED, 26 - 22

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall	Length - Overall [x]	Termination	Mounting Type	Stud/Tab Size	Insulation	Color	Material - Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Terminal Type	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Thickness	Thickness	Contact Material	Length - Overall	Tongue Inside Opening [x]	Tongue Inside Opening [x]
Panduit Corp PN22-6R-M	0.09 in	2.29 mm	17.53 mm	0.69 in	Crimp	Free Hanging (In-Line)	6 Stud	Insulated	Yellow	Nylon Polyamide (PA)	0.2 in	5.08 mm	Circular	Tin	22 AWG	26 AWG	0.02 in	0.51 mm	Copper

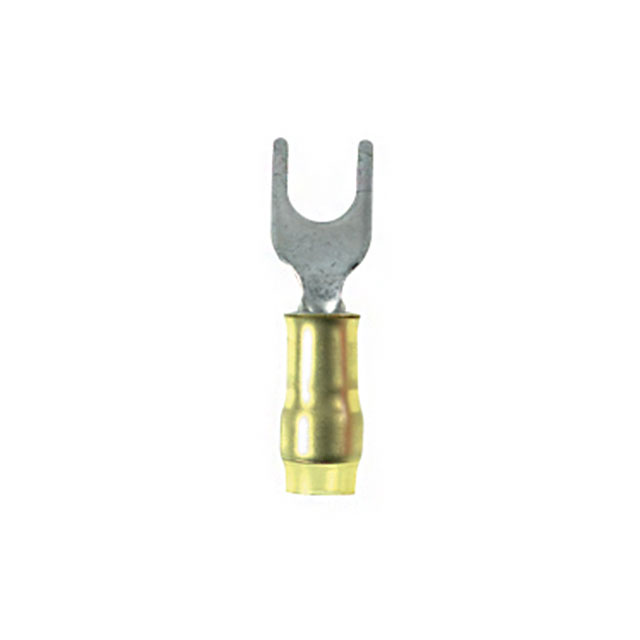

Panduit Corp PN22-6F-C	0.09 in	2.29 mm	0.77 in		Crimp	Free Hanging (In-Line)	6 Stud	Insulated	Yellow	Nylon Polyamide (PA)	0.25 "	6.35 mm	Standard	Tin	22 AWG	26 AWG			Copper	19.56 mm	3.81 mm	0.15 in
Panduit Corp PN22-6R-C	0.09 in	2.29 mm	17.53 mm	0.69 in	Crimp	Free Hanging (In-Line)	6 Stud	Insulated	Yellow	Nylon Polyamide (PA)	0.2 in	5.08 mm	Circular	Tin	22 AWG	26 AWG	0.02 in	0.51 mm	Copper
