315-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 34POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Card Type	Contact Finish	Pitch	Pitch	Number of Positions/Bay/Row [custom]	Read Out	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Gender	Flange Feature	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 315-034-521-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Panel Mount Through Hole	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm

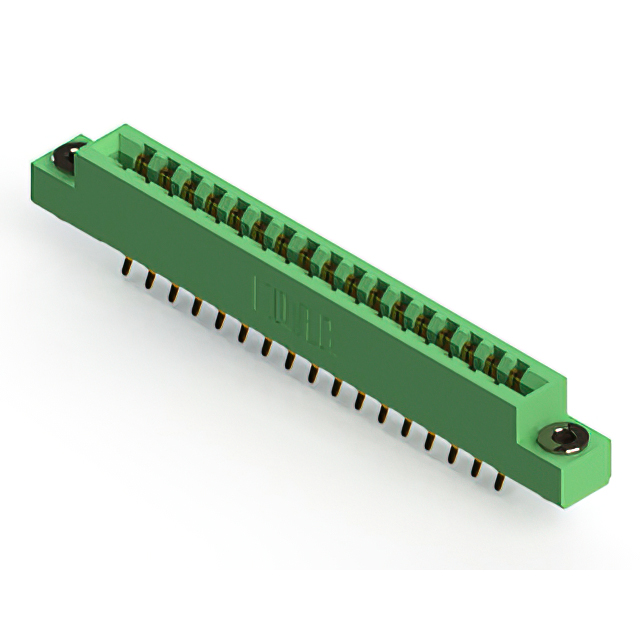

EDAC Inc. 315-034-556-203	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Board Edge Straddle Mount	Semi Bellows	Female	Floating Bobbin Flush Mount	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.116 "	2.95 mm	Card Extender

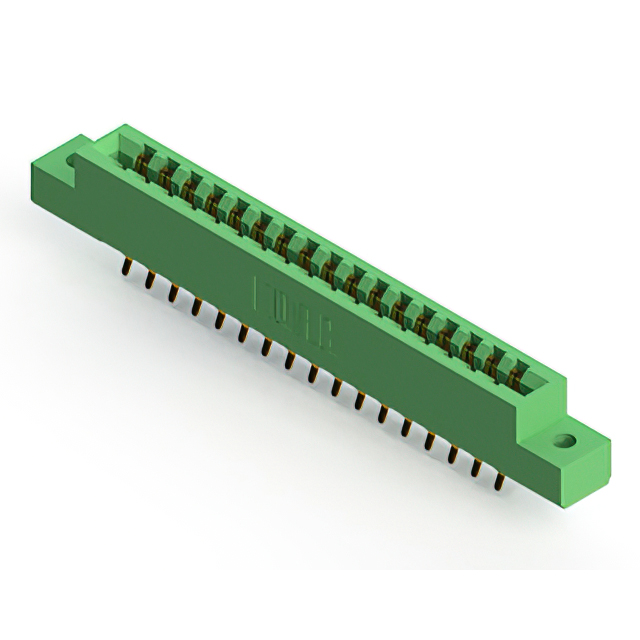

EDAC Inc. 315-034-556-202	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Board Edge Straddle Mount	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	3.25 mm	Card Extender

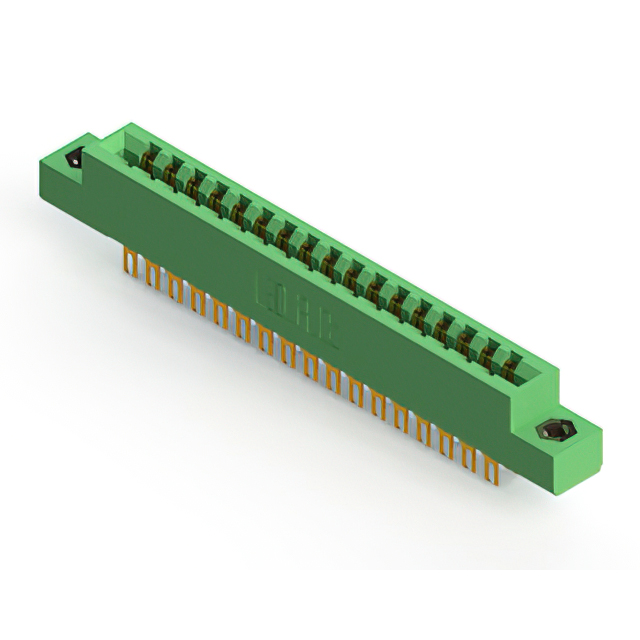

EDAC Inc. 315-034-500-208	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	34	-40 C	105 ░C	Panel Mount	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-034-521-258	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Panel Mount Through Hole	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-034-520-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Panel Mount Through Hole	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 315-034-500-268	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder Eyelet(s)	Copper Alloy	34	-40 C	105 ░C	Panel Mount	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm

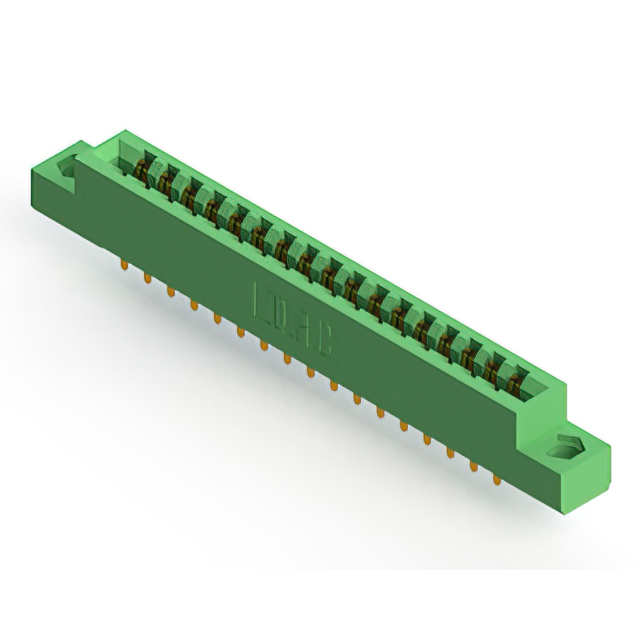

EDAC Inc. 315-034-521-204	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Panel Mount Through Hole	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.156 "	3.96 mm

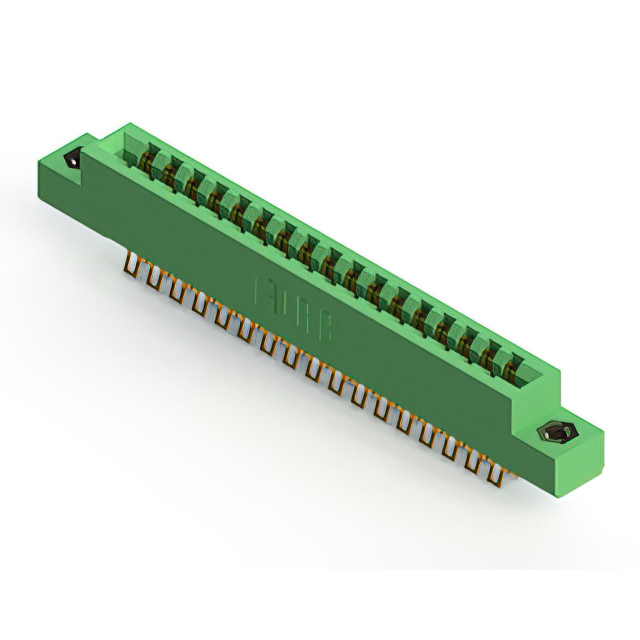

EDAC Inc. 315-034-555-208	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Board Edge Straddle Mount	Semi Bellows	Female	4-40 Flush Mount Threaded Insert Top Opening	2	0.07 in 1.78 mm	0.054 in 1.37 mm			Card Extender
EDAC Inc. 315-034-521-202	2	Polyester Thermoplastic	Non Specified - Dual Edge	Gold	3.96 mm	0.156 in	17	Dual	Green	0.25 Ám	10 Áin	Solder	Copper Alloy	34	-40 C	105 ░C	Panel Mount Through Hole	Semi Bellows	Female	Flush Mount Top Opening Unthreaded	2	0.07 in 1.78 mm	0.054 in 1.37 mm	0.128 "	3.25 mm
