1452721 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

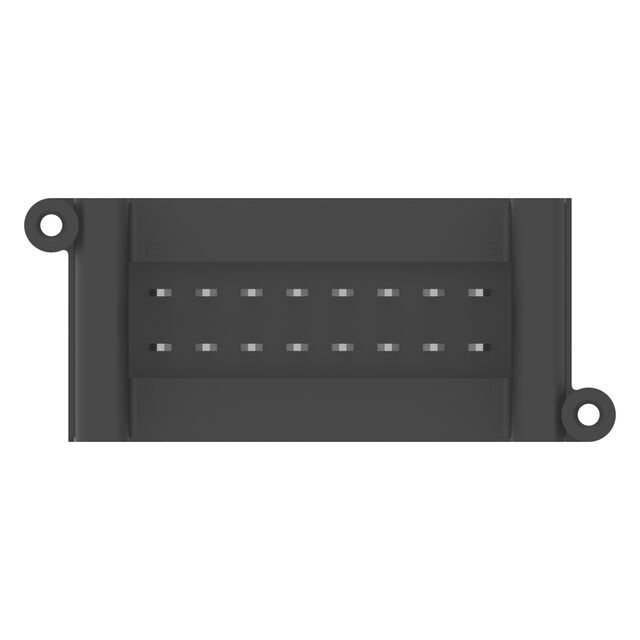

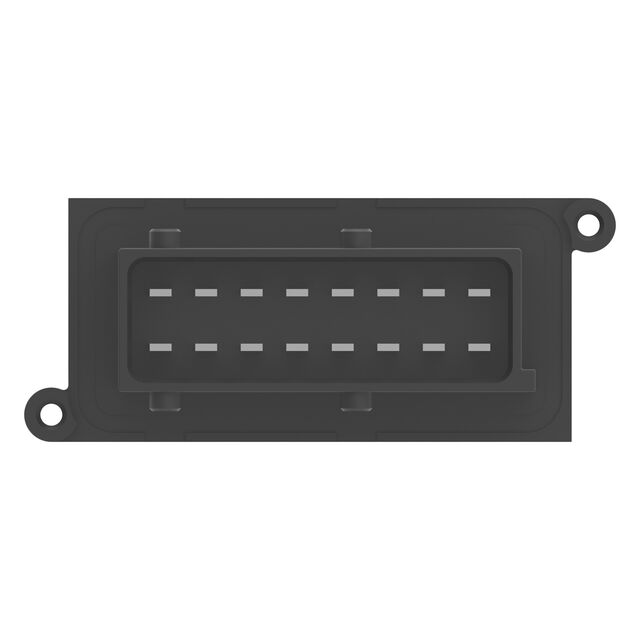

3MM TAB HEADER ASSY 180
| Part | Insulation Material | Fastening Type | Connector Type | Style | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Mounting Type | Number of Rows [custom] | Shrouding | Contact Shape | Contact Type | Pitch - Mating | Pitch - Mating | Insulation Color | Row Spacing - Mating | Row Spacing - Mating | Termination | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Push-Pull | Header | Board to Cable/Wire | 1.362 " | 34.6 mm | 85 °C | -40 C | All | Through Hole | 2 | Shrouded - 4 Wall | Rectangular | Tab | 0.197 " | 5 mm | Black | 0.236 in | 6 mm | Solder | Copper Alloy | 16 |
