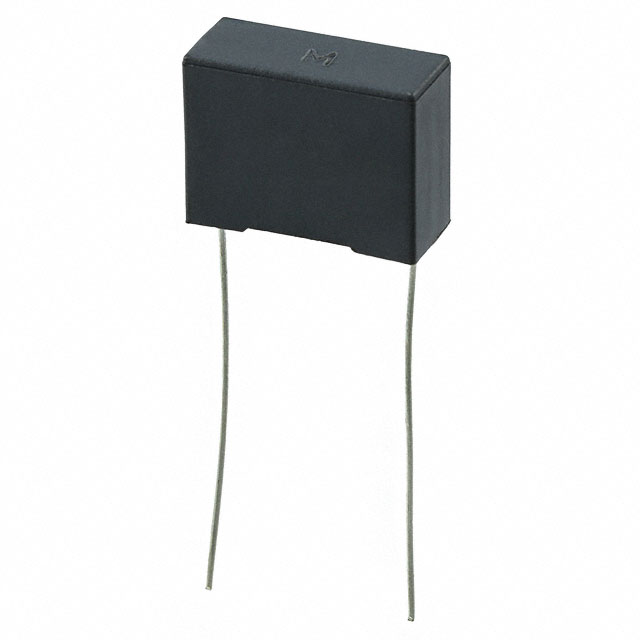

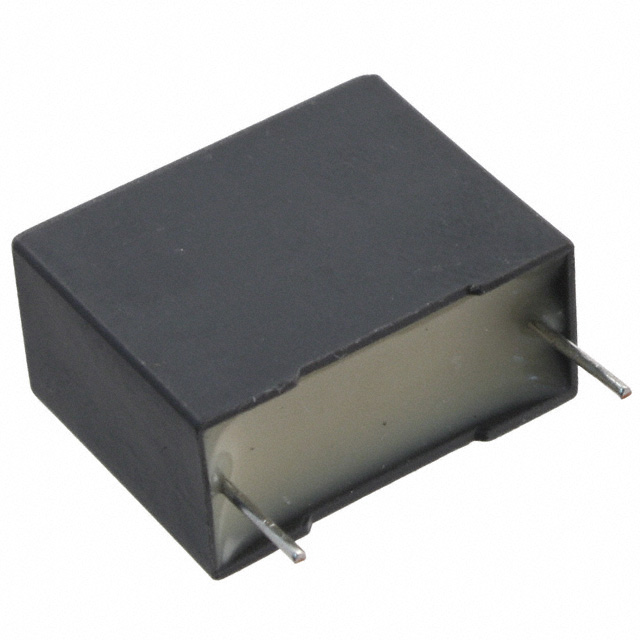

R49AI Series

Manufacturer: KEMET

Catalog

CAP, 0.01PF, 310V, METALLIZED PP, RAD

Part	Voltage Rating - AC	Lead Spacing	Lead Spacing	Package / Case	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Tolerance	Capacitance	Dielectric Material	Ratings	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]
KEMET R49AI21005001K	330 V	37.5 mm	1.476 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	10 %	10000 pF	Polypropylene (PP) Metallized	X1	PC Pins
KEMET R49AI247000B1M	330 V	15 mm	0.591 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	20 %		Polypropylene (PP) Metallized	X1	PC Pins	0.709 in	5 mm	18 mm	0.197 "	11.1 mm	0.437 in
KEMET R49AI310050A2M	330 V	15 mm	0.591 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	20 %	100000 pF	Polypropylene (PP) Metallized	X1	PC Pins	0.709 in		18 mm	0.236 "			0.693 in	17.6 mm	6 mm
KEMET R49AI322000B2M	310 V	16 mm	0.63 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	20 %	0.22 µF	Polypropylene (PP) Metallized	X1	PC Pins	0.709 in		18 mm	0.394 in			16 mm		10 mm	0.63 in
KEMET R49AI31005101K	310 V	15 mm	0.591 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	10 %	100000 pF	Polypropylene (PP) Metallized	X1	PC Pins	0.709 in		18 mm	0.335 in	14.6 mm				8.5 mm	0.575 in
KEMET R49AI31005001K	310 V	15 mm	0.591 in	Radial	800 V	-40 C	110 °C	Through Hole	EMI RFI Suppression	10 %	100000 pF	Polypropylene (PP) Metallized	X1	PC Pins	0.709 in		18 mm	0.335 in	14.6 mm				8.5 mm	0.575 in
