813-SS Series

Manufacturer: Preci-Dip

Catalog

Catalog

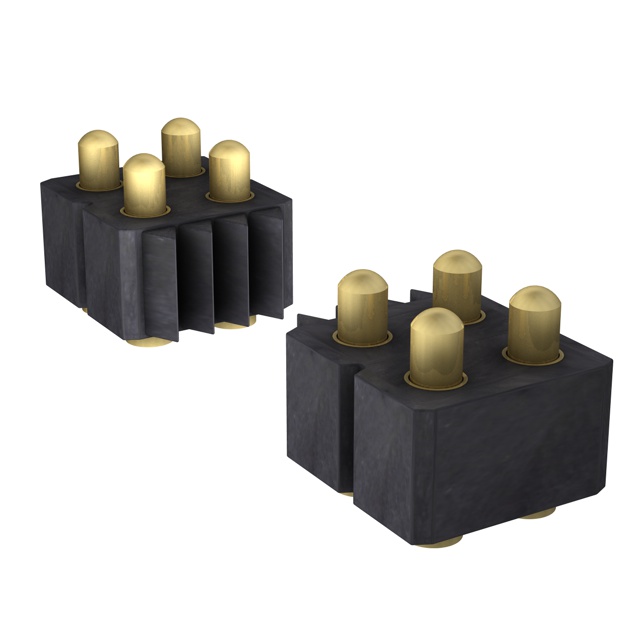

CONN SPRING PISTON 4POS SMD

...

Part	Mounting Type	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Number of Rows [custom]	Number of Contacts	Pitch	Pitch	Material	Number of Contacts [custom]

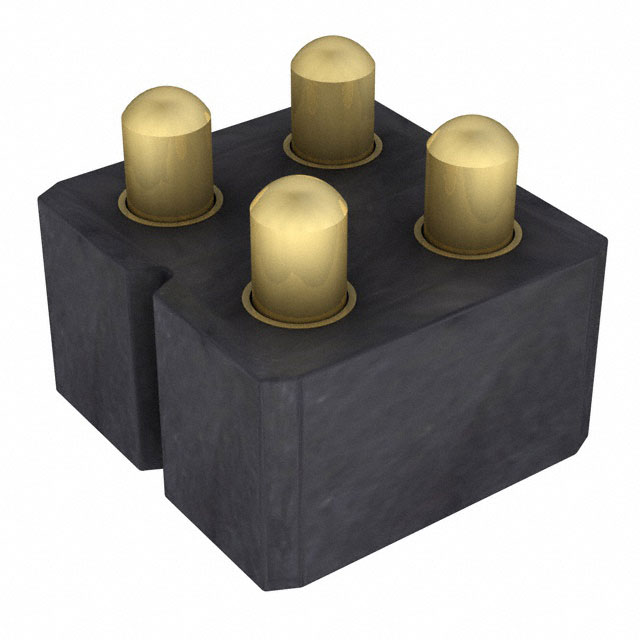

Preci-Dip 813-SS-004-30-003101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	4	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-012-30-022101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2		0.1 "	2.54 mm	Brass	12
Preci-Dip 813-SS-006-30-023101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	6	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-004-30-001101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	4	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-016-30-001101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	16	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-008-30-002191	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	8	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-006-30-003191	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	6	0.1 "	2.54 mm	Brass
Preci-Dip 813-SS-020-30-022101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2	20	0.1 "	2.54 mm	Brass

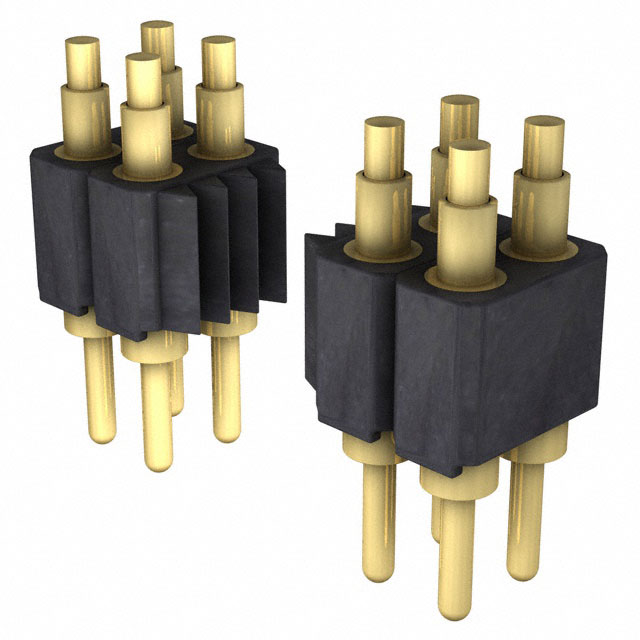

Preci-Dip 813-SS-024-10-474101	Through Hole	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2		0.1 "	2.54 mm	Brass	24
Preci-Dip 813-SS-014-30-021101	Surface Mount	Piston	Gold	19.7 µin	0.5 µm	2.54 mm	0.1 "	2		0.1 "	2.54 mm	Brass	14
