29870 Series
Manufacturer: Phoenix Contact
Beta
⌘K
RELAY GEN PURPOSE SPDT 50MA 24V
| Part | Coil Resistance | Coil Type | Contact Material | Mounting Type | Operate Time | Contact Rating (Current) | Termination Style | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Relay Type | Coil Current | Features | Release Time | Coil Voltage | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

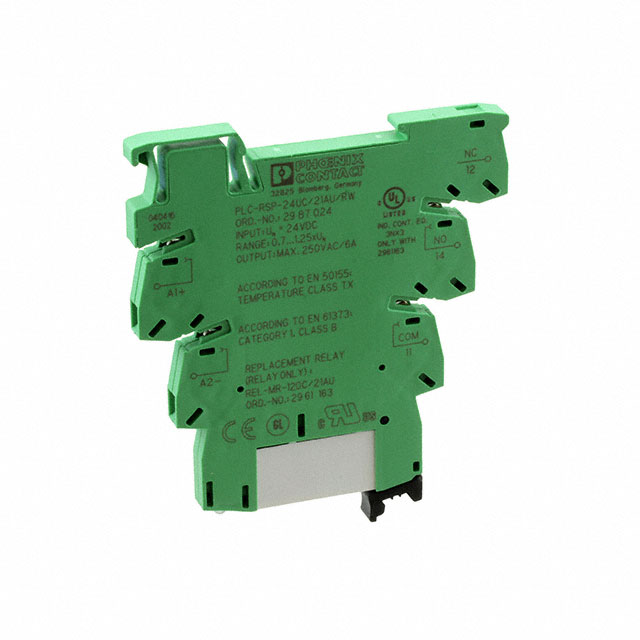

 Phoenix Contact | 2.67 kOhms | Non Latching | Gold (Au) Silver Tin Oxide (AgSnO) | DIN Rail | 4 ms | 50 mA | Spring Terminal | 30 VAC 36 VDC | 70 °C | -40 C | SPDT (1 Form C) | General Purpose | 9 mA | Diode Lighted Indicator Socket Included | 4 ms | 24 VDC | |
 Phoenix Contact | 1.2 kOhms | Non Latching | Silver Nickel (AgNi) | DIN Rail | 5 ms | 10 A | Spring Terminal | 70 °C | -40 C | SPDT (1 Form C) | General Purpose | 0.02 A | Lighted Indicator Socket Included | 11 ms | 24 VDC | 250 VAC 250 VDC | |
 Phoenix Contact | 4706 Ohms | Non Latching | Silver Tin Oxide (AgSnO) | DIN Rail | 8 ms | 6 A | Spring Terminal | 70 °C | -40 C | SPDT (1 Form C) | General Purpose | 5.1 mA | Lighted Indicator Socket Included | 11 ms | 24 VDC | 250 VAC 250 VDC | |
 Phoenix Contact | 24.83 kOhms | Non Latching | Silver Tin Oxide (AgSnO) | DIN Rail | 8 ms | 6 A | Spring Terminal | 70 °C | -40 C | SPDT (1 Form C) | General Purpose | 2.9 mA | Lighted Indicator Socket Included | 11 ms | 72 VDC | 250 VAC 250 VDC | |
Phoenix Contact | 24 kOhms | Non Latching | Gold (Au) Silver Tin Oxide (AgSnO) | DIN Rail | 4 ms | 50 mA | Spring Terminal | 30 VAC 36 VDC | 70 °C | -40 C | SPDT (1 Form C) | General Purpose | 3 mA | Diode Lighted Indicator Socket Included | 4 ms | 72 VDC |
