UB216SK Series

Catalog

LOW PROFILE PUSHBUTTON/NON ILLUM

Part	Mechanical Life	Electrical Life	Termination Style	Circuit	Actuator Type	Illumination Type, Color	Actuator Marking	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Features	Current Rating (Amps)	Voltage Rating - AC	Illumination Voltage (Nominal)	Voltage Rating - DC	Color - Actuator/Cap

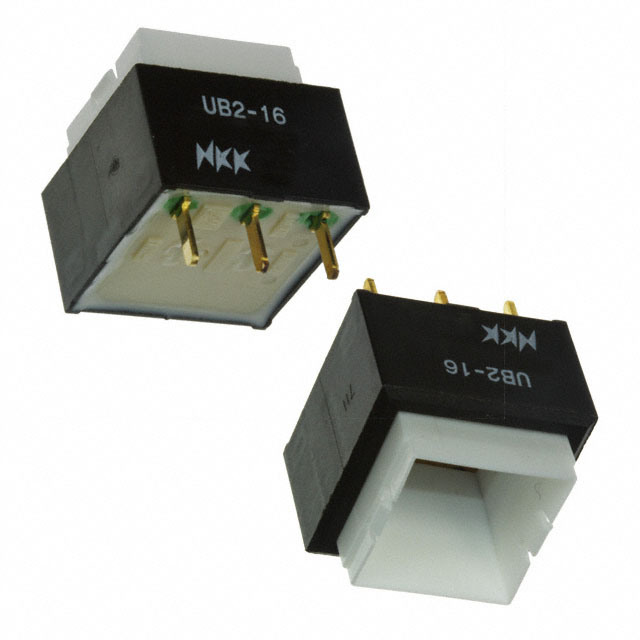

NKK Switches UB216SKG03N-5C	200000 Cycles	200000 Cycles	PC Pin	SPDT	Button Square	Green/Red LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	0.4 VA	28 V	2.1 VDC 3.5 VDC	28 V	Clear
NKK Switches UB216SKW035F-1JC	200000 Cycles	10000 Cycles	PC Pin	SPDT	Button Square	Green LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	5 A	125 V	2.1 VDC	30 V	Clear

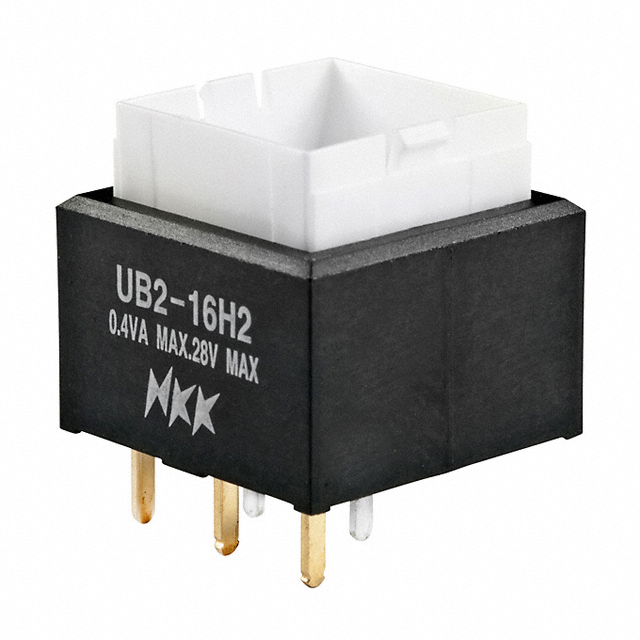

NKK Switches UB216SKG036CF	200000 Cycles	200000 Cycles	PC Pin	SPDT	Plunger for Cap	Green/Red LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	0.4 VA	28 V	2.1 VDC 3.5 VDC	28 V
NKK Switches UB216SKW036F	200000 Cycles	10000 Cycles	PC Pin	SPDT	Plunger for Cap	Green LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	5 A	125 V	3.5 VDC	30 V
NKK Switches UB216SKW036F-3JB	200000 Cycles	10000 Cycles	PC Pin	SPDT	Button Square	Green LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	5 A	125 V	3.5 VDC	30 V	Clear
NKK Switches UB216SKW036G-1JB	200000 Cycles	10000 Cycles	PC Pin	SPDT	Button Square	Blue LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	5 A	125 V	2.9 VDC	30 V	Clear
NKK Switches UB216SKW035D-1JD	200000 Cycles	10000 Cycles	PC Pin	SPDT	Button Square	Amber LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	5 A	125 V	2 VDC	30 V	Clear
NKK Switches UB216SKG036CF-1JB	200000 Cycles	200000 Cycles	PC Pin	SPDT	Button Square	Green/Red LED	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	0.4 VA	28 V	2.1 VDC 3.5 VDC	28 V	Clear
NKK Switches UB216SKG035C-1JC	200000 Cycles	200000 Cycles	PC Pin	SPDT	Button Square	LED Red	No Marking	On-On	50 °C	-25 °C	Through Hole	Illuminated Standard	Sealed - Fully	0.4 VA	28 V	1.85 VDC	28 V	Clear
NKK Switches UB216SKW03N	200000 Cycles	10000 Cycles	PC Pin	SPDT	Plunger for Cap		No Marking	On-On	70 °C	-25 °C	Through Hole	Standard	Sealed - Fully	5 A	125 V		30 V
