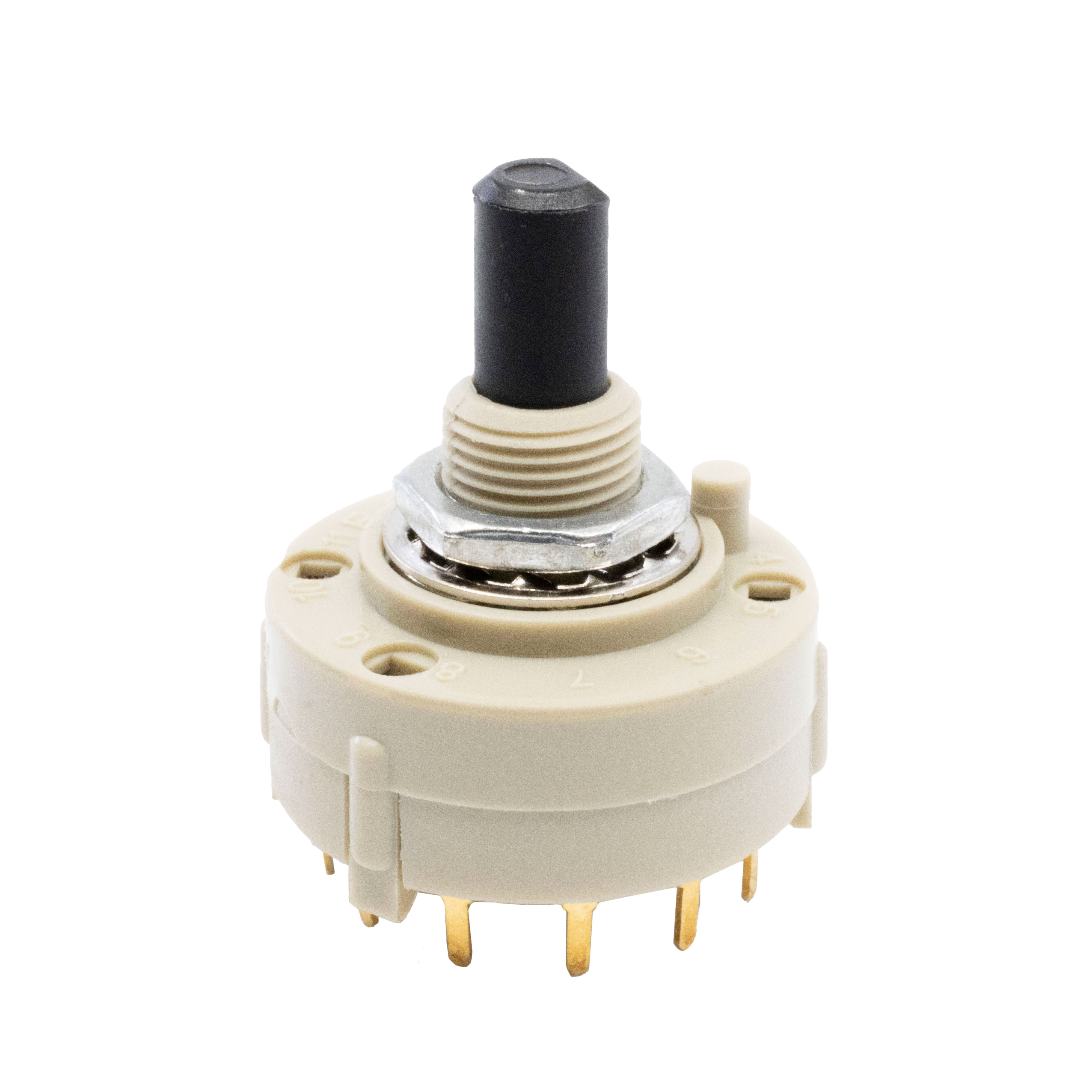

KC17A1 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 7POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Number of Positions | Contact Timing | Number of Decks [custom] | Angle of Throw | Termination Style | Current Rating (Amps) | Contact Material | Number of Poles per Deck | Mounting Type | Actuator Length [x] | Index Stops | Contact Finish | Voltage Rating - AC | Actuator Type | Circuit per Deck | Depth Behind Panel [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | 7 | Non-Shorting (BBM) | 1 | 30 ° | PC Pin | 350 mA | Copper Alloy | 1 | Panel Mount Through Hole | 10 mm | Fixed | Gold | 125 V | Flatted (6.35mm Dia) | SP7T | 14.2 mm |
 E-Switch | 9.8 mm | 7 | Non-Shorting (BBM) | 1 | 30 ° | PC Pin | 350 mA | Copper Alloy | 1 | Panel Mount Through Hole | 13 mm | Fixed | Silver | 125 V | Flatted (6.35mm Dia) | SP7T | 14.2 mm |
E-Switch | 9.8 mm | 7 | Non-Shorting (BBM) | 1 | 30 ° | PC Pin | 350 mA | Copper Alloy | 1 | Panel Mount Through Hole | 10 mm | Fixed | Silver | 125 V | Flatted (6.35mm Dia) | SP7T | 14.2 mm |
