1.15106 Series
Manufacturer: RAFI USA
Beta
⌘K

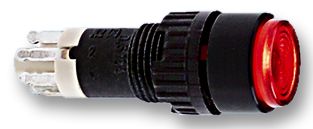

PUSHBUTTON 9,1 MM RD
| Part | Termination Style | Mounting Type | Color - Actuator/Cap | Switch Function | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Current Rating (Amps) | Type | Actuator Type | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Circuit | Ingress Protection | Electrical Life | Mechanical Life | Illumination Type, Color | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RAFI USA | Solder Lug | Panel Mount Front | Red | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | ||||

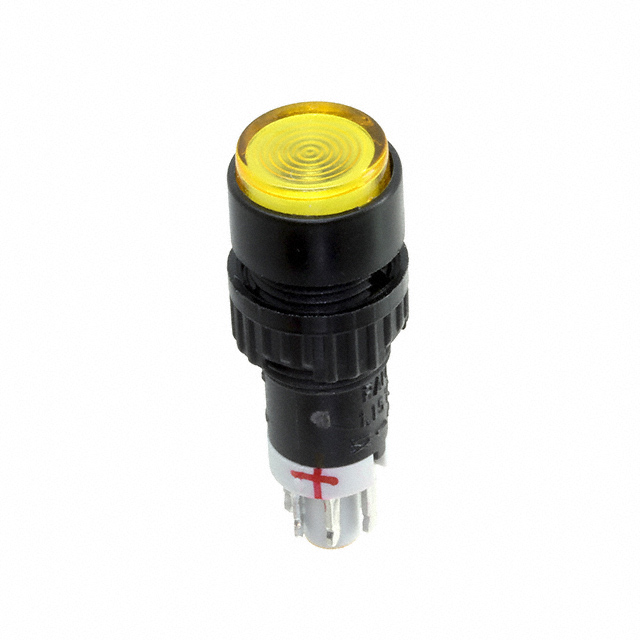

 RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | 200000 Cycles | 200000 Cycles | LED White | 2 VDC |
 RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | Green LED | 2 VDC | ||
RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | LED White | 2 VDC | ||

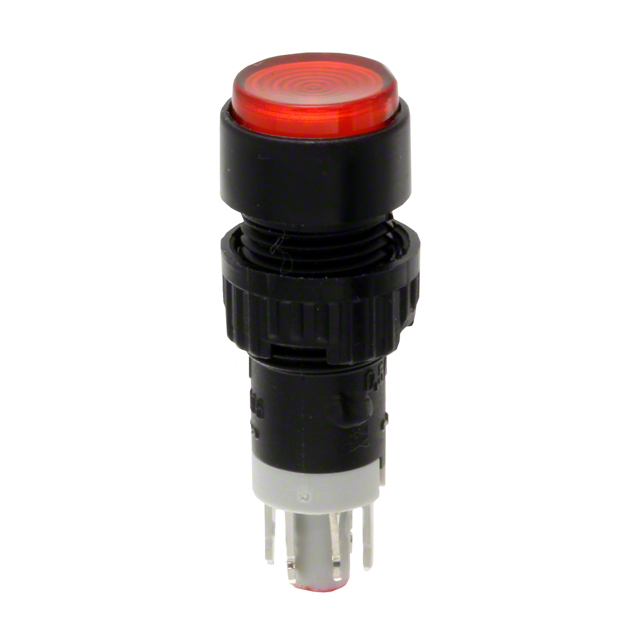

 RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | LED Red | 2 VDC | ||
RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | 200000 Cycles | 200000 Cycles | Green LED | 2 VDC |
RAFI USA | Solder Lug | Panel Mount Front | Clear | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Illuminated Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | 200000 Cycles | 200000 Cycles | Blue LED | 2 VDC |

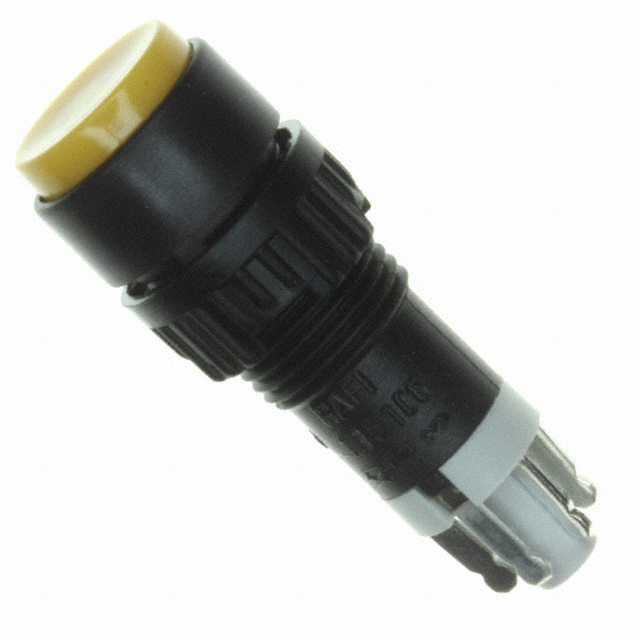

 RAFI USA | Solder Lug | Panel Mount Front | Yellow | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | 200000 Cycles | 200000 Cycles | ||
RAFI USA | Solder Lug | Panel Mount Front | Green | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 | ||||
RAFI USA | Solder Lug | Panel Mount Front | Yellow | Off-Mom On-Mom | 9.1 mm | 24 V | 500 mA | Standard | Button Round | No Marking | -25 °C | 70 °C | 24 V | DPST-NO/NC | IP40 |
