1744418 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

18 POS EP 2.5 HDR, GLOW WIRE

Part	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Connector Type	Fastening Type	Current Rating (Amps)	Contact Material	Termination	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Shrouding	Features	Material Flammability Rating	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Style	Contact Shape	Number of Rows	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color

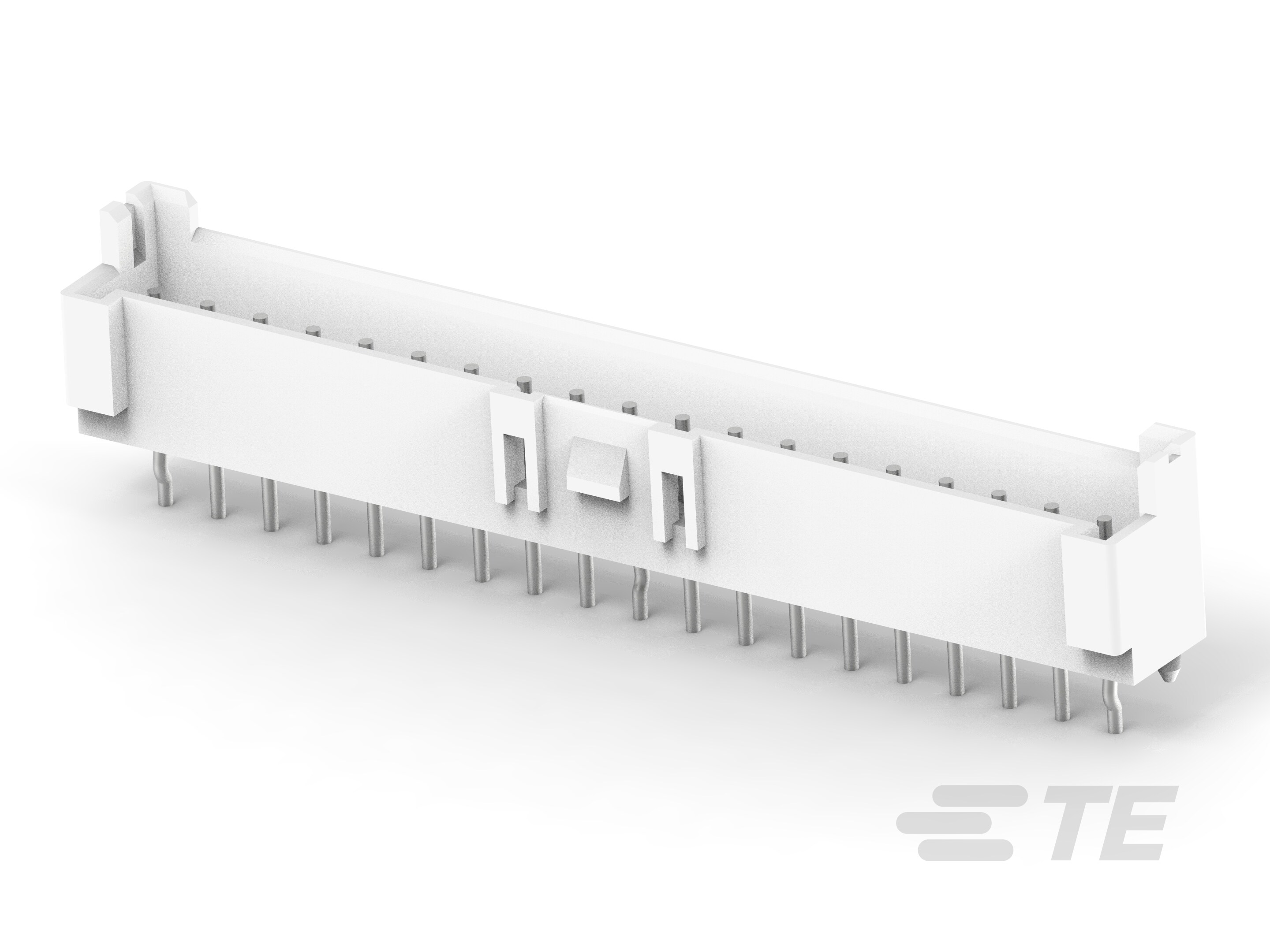

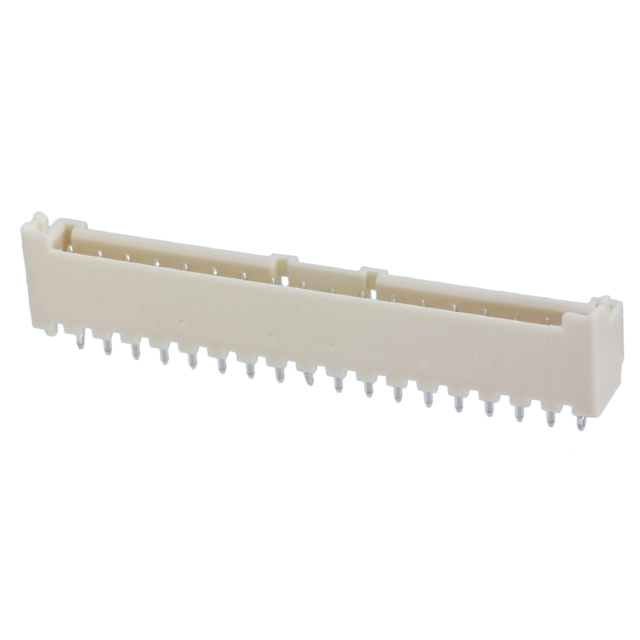

TE Connectivity Raychem Cable Protection 1-1744418-8	Through Hole	0.134 in	3.4 mm	18	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural

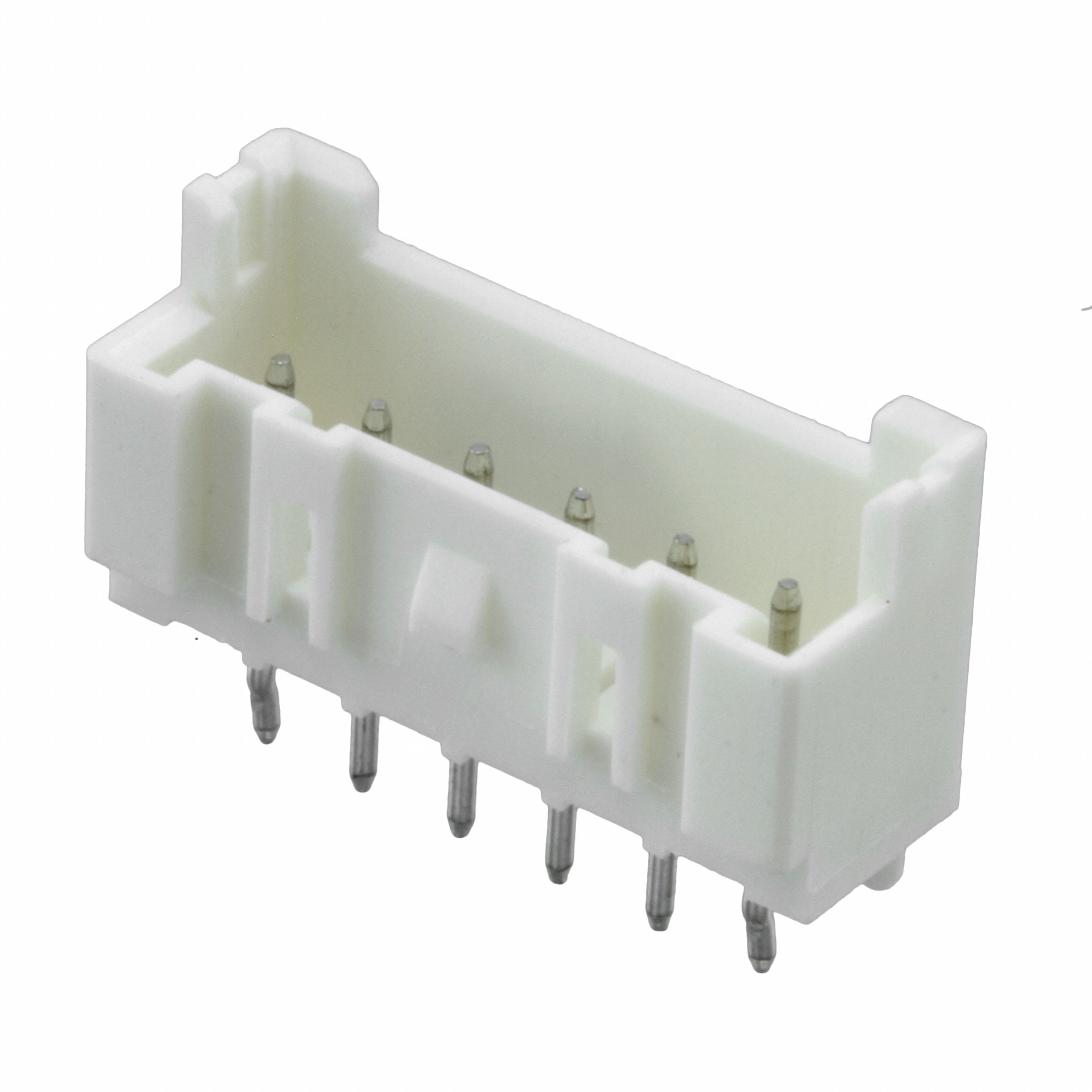

TE Connectivity Raychem Cable Protection 1744418-6	Through Hole	0.134 in	3.4 mm	6	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural
TE Connectivity Raychem Cable Protection 1-1744418-7	Through Hole	0.134 in	3.4 mm		Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural

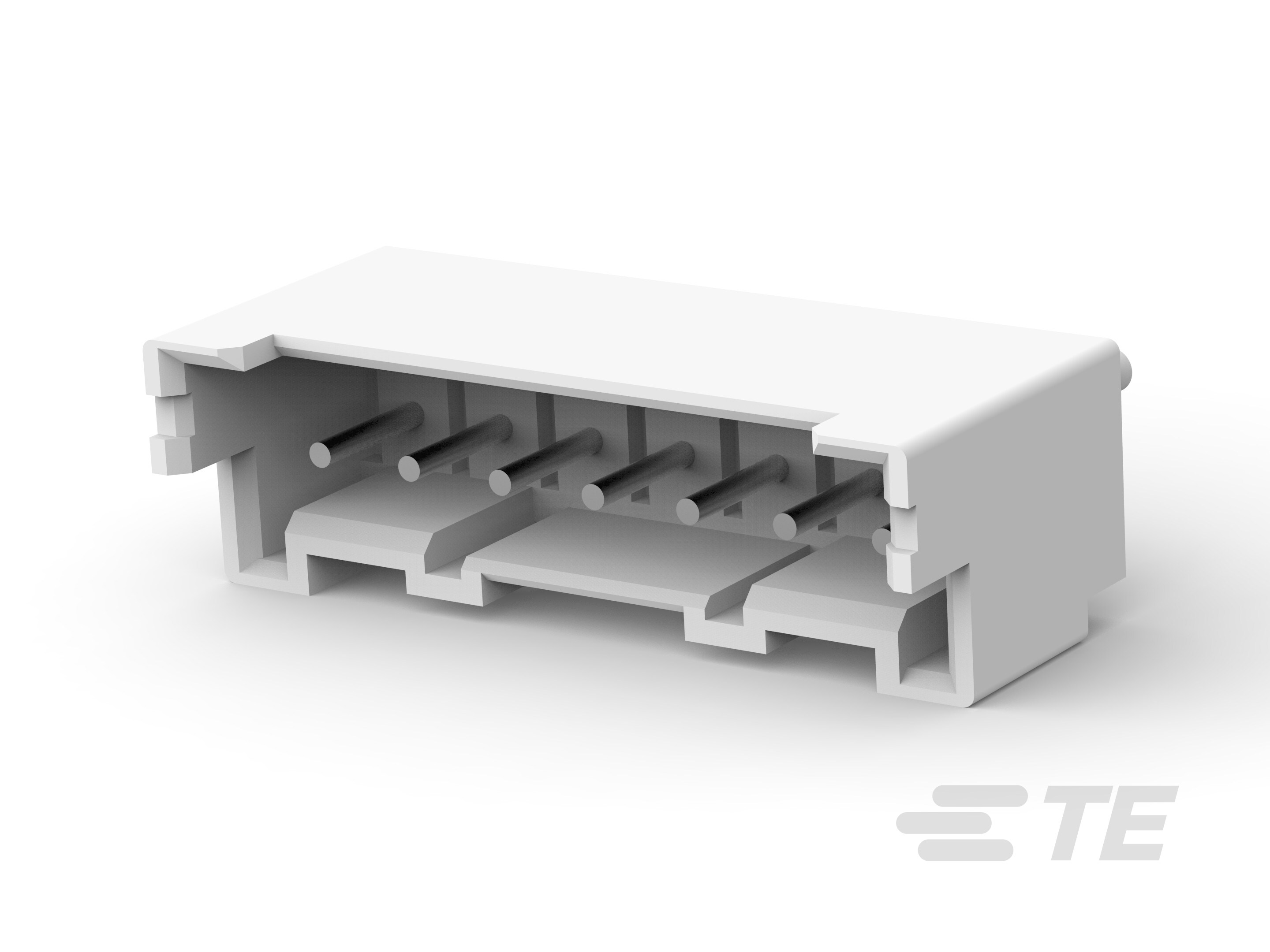

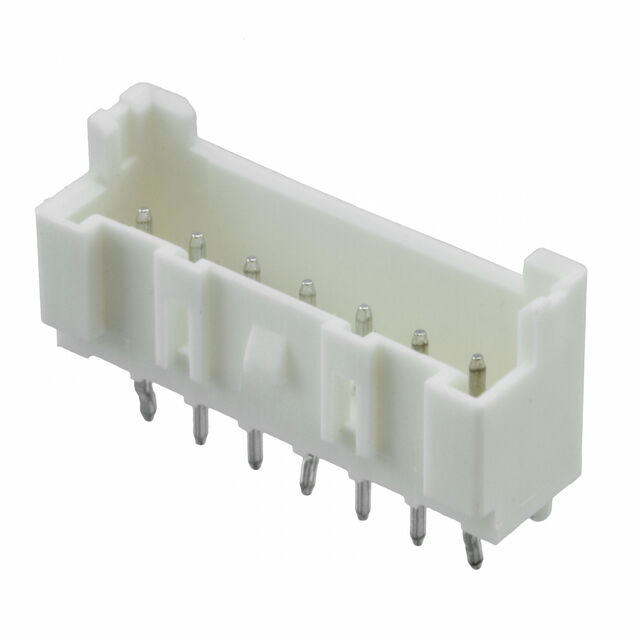

TE Connectivity Raychem Cable Protection 1744418-7	Through Hole	0.134 in	3.4 mm	7	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural

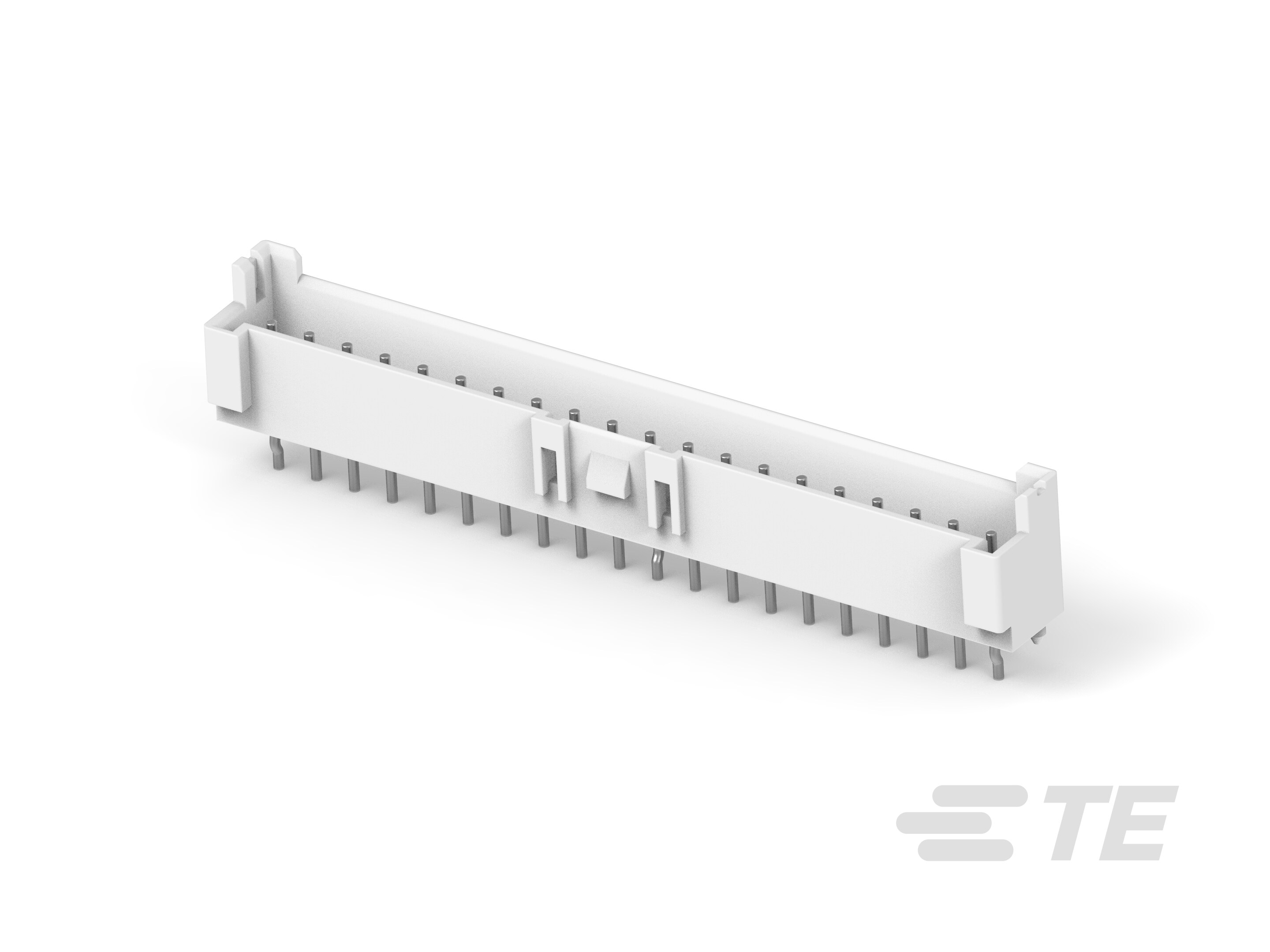

TE Connectivity Raychem Cable Protection 2-1744418-0	Through Hole	0.134 in	3.4 mm	20	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural

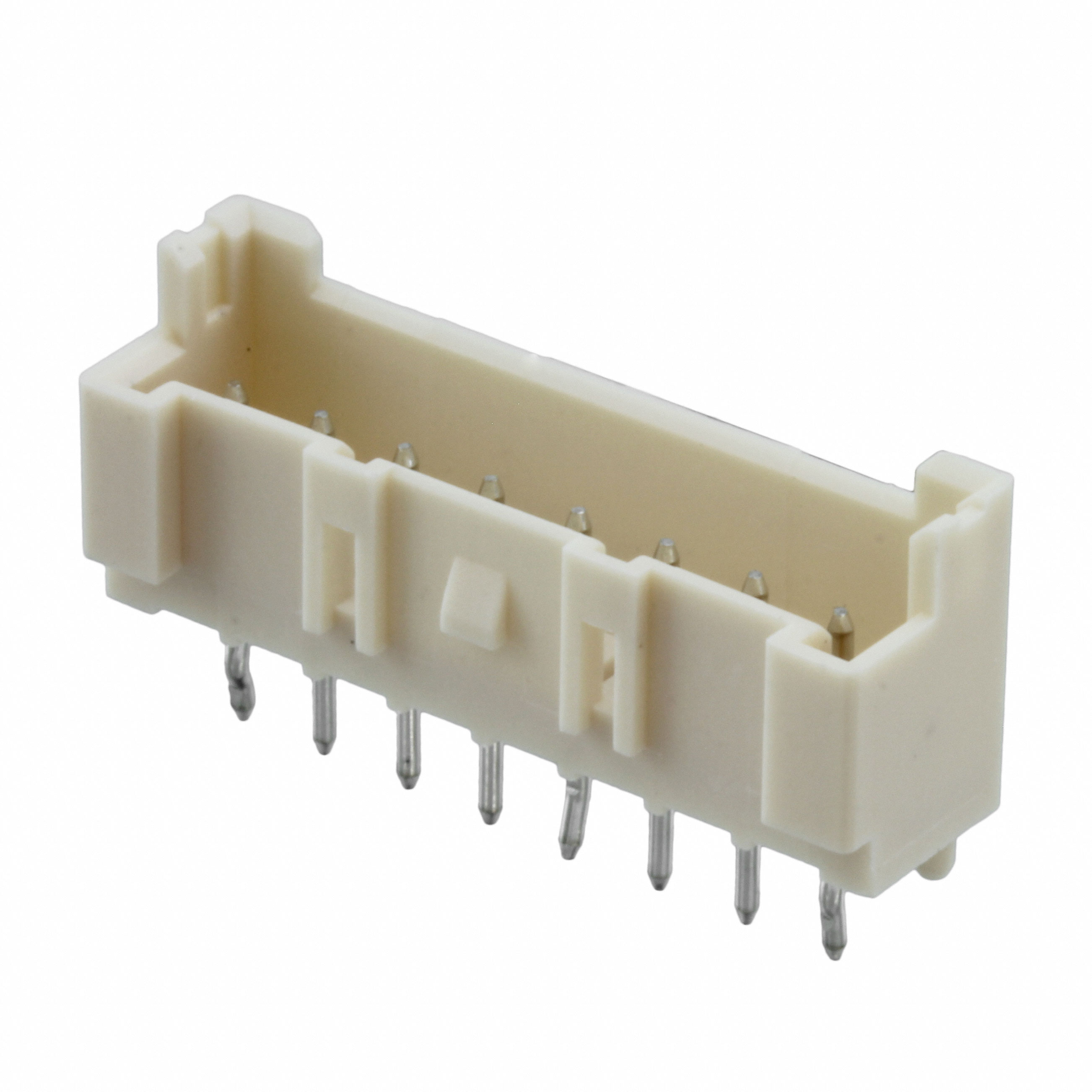

TE Connectivity Raychem Cable Protection 1744418-8	Through Hole	0.134 in	3.4 mm	8	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural

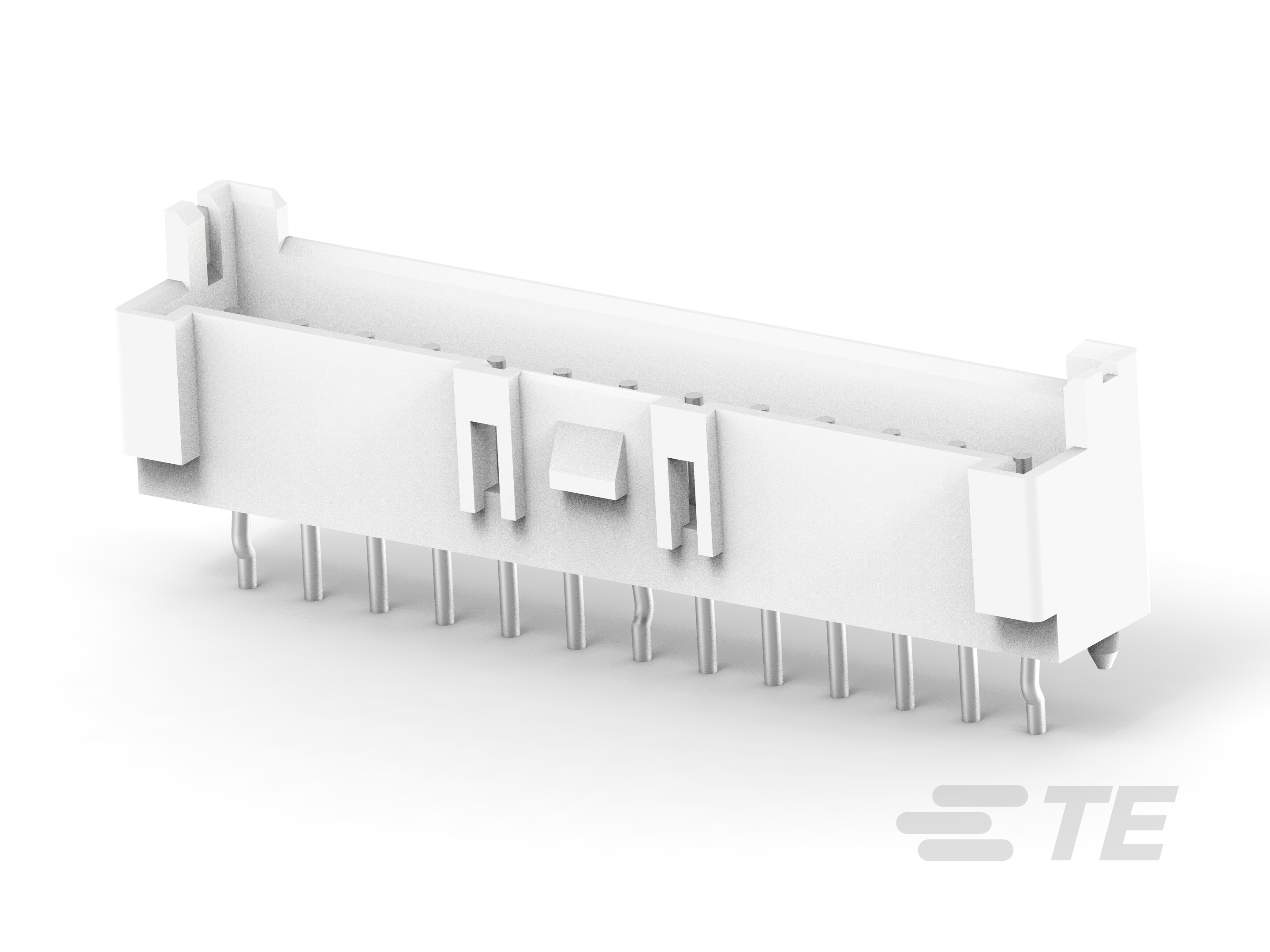

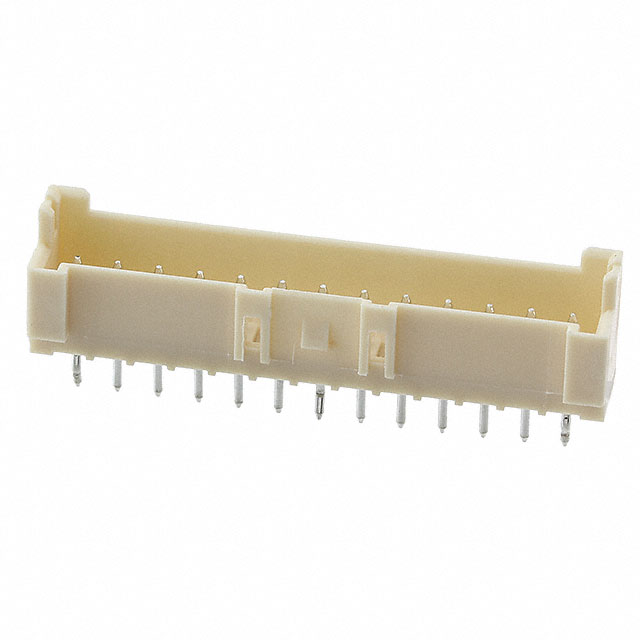

TE Connectivity Raychem Cable Protection 1-1744418-3	Through Hole	0.134 in	3.4 mm	13	Header	Friction Lock	4.2 A	Copper Alloy	Kinked Pin Solder	Male Pin	2.03 µm	80 µin	General Purpose Industrial Lighting	105 ░C	-55 °C	0.346 in	8.8 mm	Shrouded - 4 Wall	Board Guide Glow Wire Compliant	UL94 V-0	All	Nylon Polyamide (PA)	2.03 µm	80 µin	250 VAC	Board to Cable/Wire	Circular	1	Tin	2.5 mm	0.098 in	Natural
