21_MCX-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

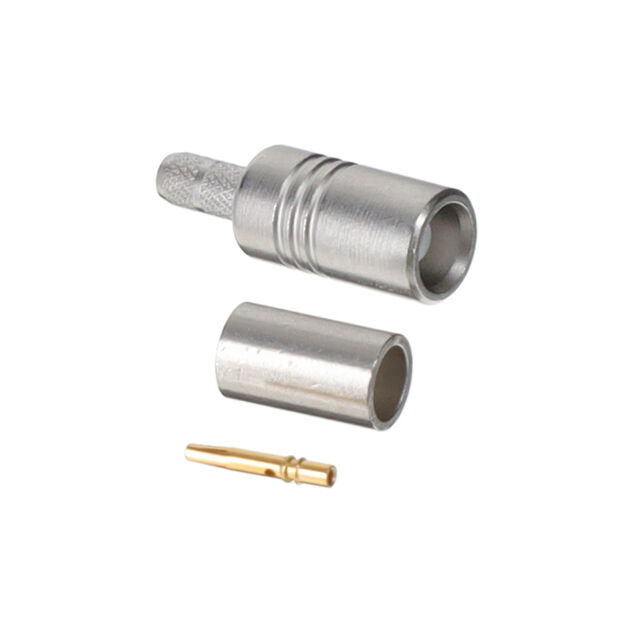

21_MCX-50-2-12/133_NH
| Part | Center Contact Plating | Voltage Rating | Dielectric Material | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Shield Termination | Fastening Type | Housing Color | Mounting Type | Center Contact Material | Frequency - Max [Max] | Connector Type | Connector Style | Impedance | Cable Group | Number of Ports | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 500 | 155 C | -55 C | Brass | Crimp | Snap-On | Silver | Free Hanging (In-Line) | Beryllium Copper | 6000 MHz | Female Socket Jack | MCX | 50 Ohms | RD-316 | 1 | Crimp |
 Huber+Suhner, Inc. | Gold | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | 500 | 155 C | -55 C | Brass | Crimp | Snap-On | Gold | Free Hanging (In-Line) | Beryllium Copper | 6000 MHz | Female Socket Jack | MCX | 50 Ohms | 188 316 RG-174 | 1 | Crimp |
 Huber+Suhner, Inc. | Gold | 170 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | 500 | 155 C | -55 C | Brass | Crimp | Snap-On | Silver | Free Hanging (In-Line) | Beryllium Copper | 6000 MHz | Female Socket Jack | MCX | 50 Ohms | 188 316 RG-174 | 1 | Crimp |
