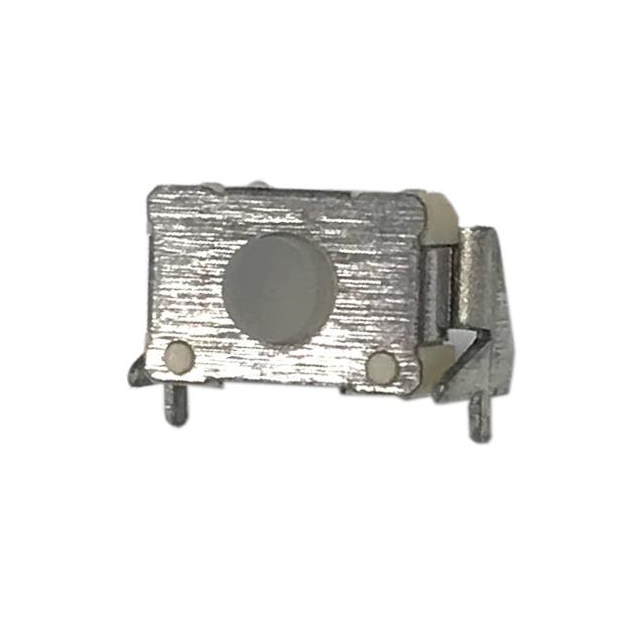

228HDSA Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Illumination | Operating Force | Circuit | Illumination Type, Color | Termination Style | Actuator Type | Switch Function | Actuator Orientation | Contact Rating @ Voltage | Actuator Length, Right Angle | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 0.5 mm | 100000 Cycles | Illuminated | 160 gf | SPST-NO | Blue LED Red | PC Pin | Standard | Off-Mom | Side Actuated | 0.05 A 12 VDC | 3.55 mm | Right Angle Through Hole | -20 ░C | 70 °C | |
 CTS Electrocomponents | 0.5 mm | 100000 Cycles | Illuminated | 160 gf | SPST-NO | LED White | PC Pin | Standard | Off-Mom | Side Actuated | 0.05 A 12 VDC | 3.55 mm | Right Angle Through Hole | -20 ░C | 70 °C | 3 VDC |
