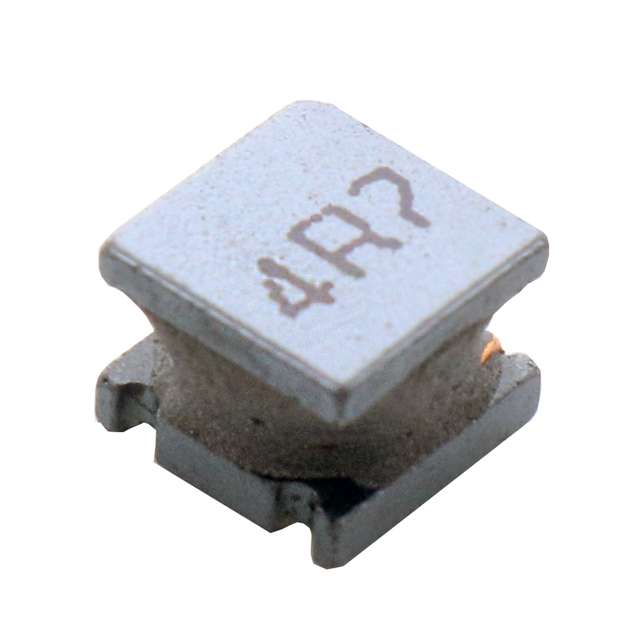

MPL-SE5040 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
FIXED IND 470NH 8A 7.3 MOHM SMD
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance | Package / Case | Mounting Type | Inductance Frequency - Test | Current Rating (Amps) | Current - Saturation (Isat) | DC Resistance (DCR) | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 470 nH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 8 A | 16 A | 7.3 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 4.7 ÁH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 4.3 A | 5 A | 33 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
 Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 2.2 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 5.4 A | 7.9 A | 16 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 15 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 2.5 A | 2.9 A | 83 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 10 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 3.2 A | 3.6 A | 56 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 3.3 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 5.2 A | 6.4 A | 22 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 6.8 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 3.5 A | 4.6 A | 45 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 22 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 2.1 A | 2.4 A | 124 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 1.5 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 6.2 Amps | 9.3 A | 14 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
Monolithic Power Systems Inc. | 4.9 mm | 4.9 mm | 0.193 in | 0.193 in | 1 µH | Nonstandard 2 Lead | Surface Mount | 100 kHz | 7.6 A | 10.5 A | 9.4 mOhm | 125 °C | -40 C | 4 mm | 0.157 in | Shielded |
