BHR-14 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER SMD 14POS 2.54MM

Part	Insulation Height	Insulation Height	Insulation Material	Current Rating (Amps)	Number of Positions	Insulation Color	Number of Rows [custom]	Material Flammability Rating	Mounting Type	Features	Connector Type	Pitch - Mating	Pitch - Mating	Style	Termination	Voltage Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Material	Fastening Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post

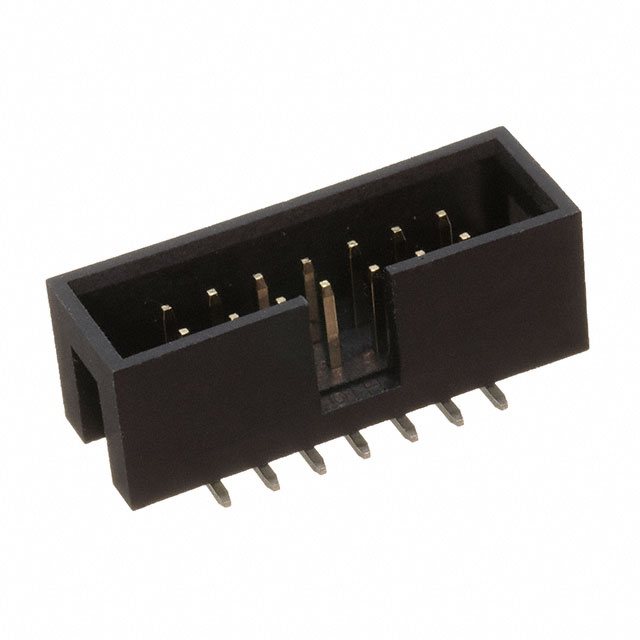

Adam Tech BHR-14-VSG-SMT	0.413 in	10.49 mm	Thermoplastic	3 A	14	Black	2	UL94 V-0	Surface Mount	Keying Slot	Header	0.1 "	2.54 mm	Board to Board Cable	Solder	250 VAC	Gold	Flash	Shrouded - 4 Wall	-40 C	105 ░C	Male Pin	Brass	Push-Pull	Square	0.1 in	2.54 mm	Tin	All

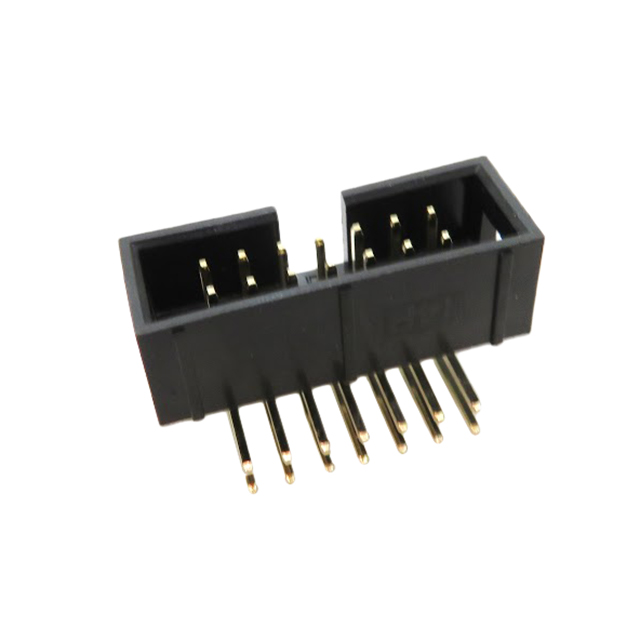

Adam Tech BHR-14-HUA	0.356 "	9.05 mm	Polybutylene Terephthalate (PBT) Glass Filled		14	Black	2	UL94 V-0	Right Angle Through Hole	Keying Slot	Header	0.1 "	2.54 mm	Board to Board Cable	Solder	250 VAC	Gold	Flash	Shrouded - 4 Wall	-40 C	105 ░C	Male Pin	Brass	Push-Pull	Square	0.1 in	2.54 mm	Gold	All	Flash	0.134 "	3.4 mm

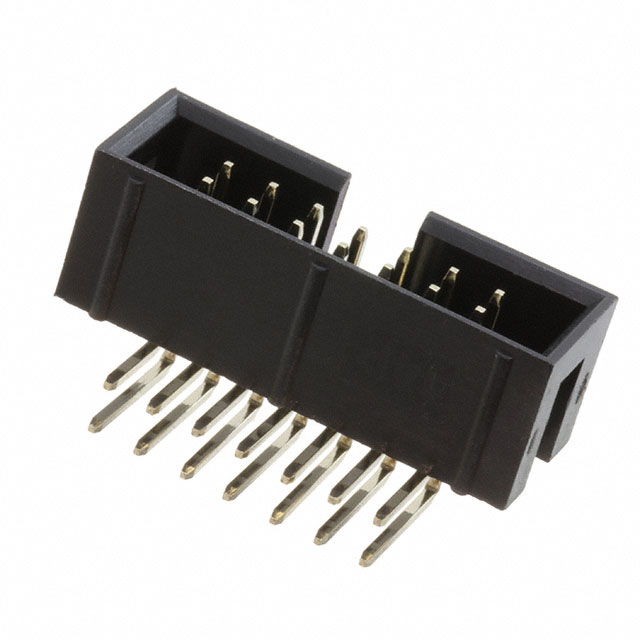

Adam Tech BHR-14-HUA-ML	0.354 in	9 mm	Polybutylene Terephthalate (PBT) Glass Filled	3 A	14	Black	2	UL94 V-0	Right Angle Through Hole	Keying Slot	Header	0.1 "	2.54 mm	Board to Board Cable	Solder	350 VAC	Gold	Flash	Shrouded - 4 Wall	-40 C	105 ░C	Male Pin	Brass	Latch Lock/Eject Hooks Long	Square	0.1 in	2.54 mm	Gold	All	Flash	0.126 "		3.2 mm
Adam Tech BHR-14-VUA-ML	0.358 "	9.1 mm	Polybutylene Terephthalate (PBT) Glass Filled	3 A	14	Black	2	UL94 V-0	Through Hole	Keying Slot	Header	0.1 "	2.54 mm	Board to Board Cable	Solder	250 VAC	Gold	Flash	Shrouded - 4 Wall	-40 C	105 ░C	Male Pin	Brass	Push-Pull	Square	0.1 in	2.54 mm	Gold	All	Flash		3.3 mm		0.13 "
