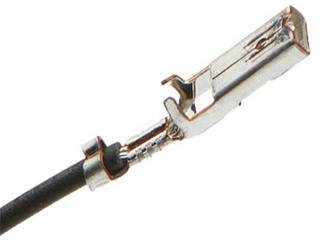

VersaBlade High-Temperature Female Crimp Terminal, 22-20 AWG
VersaBlade High-Temperature Female Crimp Terminal, 22-20 AWG
| Part | Fastening Type | Voltage Rating | Stacking Direction | Color | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Number of Rows | Contact Type | Contact Termination | Pitch [x] | Pitch [x] | Mounting Type | Note | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | |||||||||||||||||||||

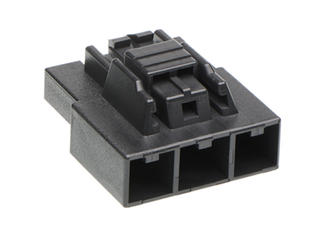

 Molex | Locking Ramp | 600 V | Side to Side | Black | Plug | -55 °C | 150 °C | Polyamide (PA6) Nylon 6 | 1 | Female Blade Socket Male Blade | Crimp | 0.287 in | 7.3 mm | Free Hanging (In-Line) | Contacts Not Included | ||||||
Molex | |||||||||||||||||||||
 Molex | Female Blade Socket | Crimp | Tin | 31.5 µin | 0.8 µm | 20 AWG | 22 AWG | Copper Alloy |
