1.14.001 Series

Manufacturer: RAFI USA

Catalog

SWITCH TACTILE

Part	Actuator Type	Illumination	Circuit	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical	Switch Travel	Outline [x]	Outline [y]	Mounting Type	Switch Function	Illumination Voltage (Nominal)	Termination Style	Contact Rating @ Voltage	Operating Force	Mechanical Life	Illumination Type, Color
RAFI USA 1.14.001.013/0000

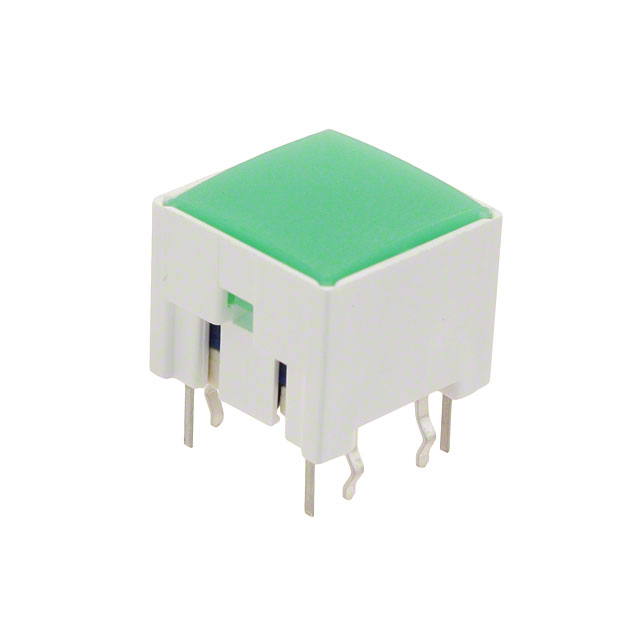

RAFI USA 1.14.001.552/0000	Square Button	Illuminated	SPST-NO	Top Actuated	80 °C	-40 C	9.7 mm	0.34 mm	11.35 mm	11.35 mm	Through Hole	Off-Mom	1.8 VDC	PC Pin	0.1 A 42 VAC/DC	330 gf	1000000 Cycles	Green LED
RAFI USA 1.14.001.302/0000
RAFI USA 1.14.001.012/0000
RAFI USA 1.14.001.011/0000
RAFI USA 1.14.001.926/0000
RAFI USA 1.14.001.918/0000
RAFI USA 1.14.001.003/0000
RAFI USA 1.14.001.554/0000	Square Button	Illuminated	SPST-NO	Top Actuated	80 °C	-40 C	9.7 mm	0.34 mm	11.35 mm	11.35 mm	Through Hole	Off-Mom	1.9 VDC	PC Pin	0.1 A 42 VAC/DC	330 gf	1000000 Cycles	LED Yellow
RAFI USA 1.14.001.012/0000
