9GA0712 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

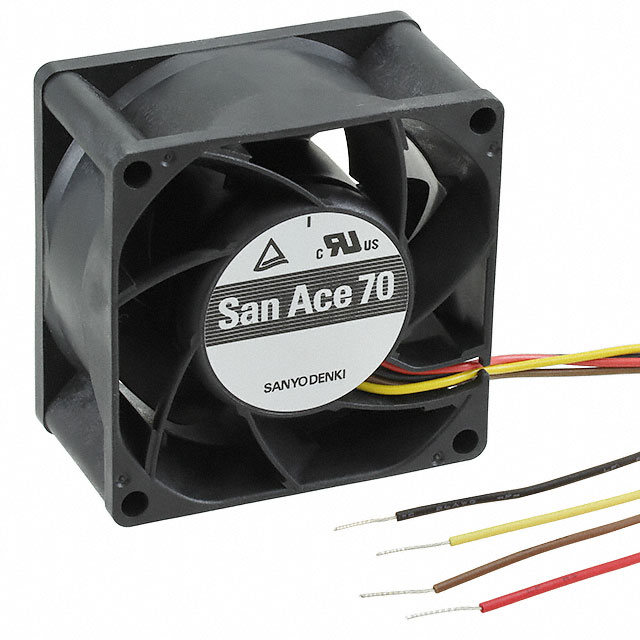

AXIAL FAN, HIGH AIR FLOW, LOW POWER CONSUMPTION, SAN ACE 70 SERIES, 12 VDC, 70 MM, 38 MM ROHS COMPLIANT: YES
| Part | Material - Blade | Current Rating (Amps) | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Features | Bearing Type | Fan Type | Weight [custom] | Weight [custom] | Size / Dimension [x] | Size / Dimension [z] | Width [y] | Power (Watts) | Termination | Static Pressure | Static Pressure | Air Flow | Air Flow | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Noise | Voltage - Rated | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 1.1 A | 40000 Hrs | 10.8 VDC | 13.2 VDC | Plastic | PWM Control Speed Sensor (Tach) | Ball | Tubeaxial | 0.375 lb | 170.1 g | 70 mm | 70 mm | 38 mm | 13.2 W | 4 Wire Leads | 1.83 in H2O | 455.8 Pa | 67.8 CFM | 1.9 m³/min | -20 ░C | 70 °C | CSA TUV UL | 57 dB | 12 VDC | 12000 RPM |
 Sanyo Denki America Inc. | Plastic | 2.6 A | 40000 Hrs | 10.8 VDC | 13.2 VDC | Plastic | PWM Control Speed Sensor (Tach) | Ball | Tubeaxial | 0.375 lb | 170.1 g | 70 mm | 70 mm | 38 mm | 31.2 W | 4 Wire Leads | 3.453 in H2O | 860.1 Pa | 93.6 CFM | 2.62 m³/min | -20 ░C | 70 °C | CSA TUV UL | 65 dB | 12 VDC | 16500 RPM |
