317-086 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 86 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Number of Positions/Bay/Row	Pitch	Pitch	Number of Positions	Color	Contact Material	Contact Type	Flange Feature	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Read Out	Contact Finish	Card Type	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 317-086-542-807	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	M3 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-540-801	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-540-807	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	M3 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-542-878	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge	Card Guides
EDAC Inc. 317-086-540-802	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-540-808	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-540-804	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge		0.156 "	3.96 mm

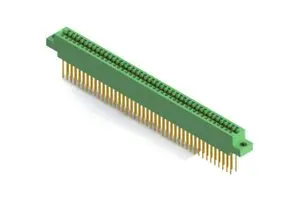

EDAC Inc. 317-086-542-808	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	4-40 Threaded Insert Top Mount Opening	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge

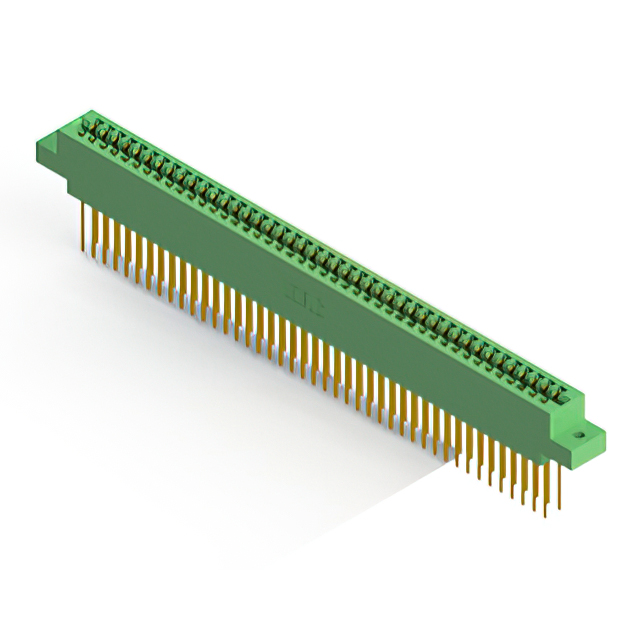

EDAC Inc. 317-086-542-802	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever		0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge
EDAC Inc. 317-086-542-803	Diallyl Phthalate (DAP)	43	3.96 mm	0.156 in	86	Green	Copper Alloy	Cantilever	Floating Bobbin Flush Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	0.25 Ám	10 Áin	Wire Wrap	Through Hole	-65 ░C	125 °C	2	Dual	Gold	Non Specified - Dual Edge		0.116 "	2.95 mm
