SFW4S Series

Catalog

CONN FFC FPC VERT 4POS 1MM SMD

Part	Mating Cycles	Housing Color	Contact Finish	Material Flammability Rating	Voltage Rating	Flat Flex Type	Contact Material	Connector/Contact Type	Termination	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Housing Material	Pitch	Pitch	Number of Positions	Locking Feature	Mounting Type	Actuator Material	Actuator Color	Cable End Type	Features	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]

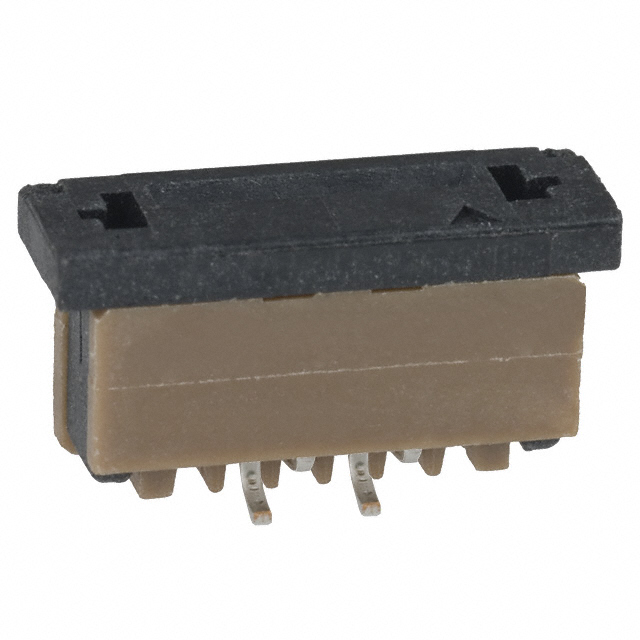

Amphenol ICC (FCI) SFW4S-2STE1LF	20	Brown	Tin	UL94 V-0	100 V	FFC FPC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm	-55 C	105 ░C	0.33 mm	Glass Filled Thermoplastic	1 mm	0.039 in	4	Slide Lock	Surface Mount	Thermoplastic Glass Filled
Amphenol ICC (FCI) SFW4S-2STME1	20	Brown	Tin Alloy	UL94 V-0	100 V	FFC FPC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm	-55 C	85 °C		Glass Filled Thermoplastic	1 mm	0.039 in	4	Slide Lock	Surface Mount	Thermoplastic Glass Filled	Black	Straight Tapered	Solder Retention Zero Insertion Force (ZIF)	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFW4S-2STAE1LF	20	Brown	Gold	UL94 V-0	100 V	FPC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm	-55 C	85 °C	0.33 mm	Glass Filled Thermoplastic	1 mm	0.039 in	4		Surface Mount	Thermoplastic Glass Filled
Amphenol ICC (FCI) SFW4S-2STMAE9LF		Brown	Gold			FPC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm			0.3 mm		1 mm	0.039 in	4	Slide Lock	Surface Mount		Black	Tapered
Amphenol ICC (FCI) SFW4S-6STME1LF	10	Brown	Tin	UL94 V-0	100 V	CIC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm	-55 C	85 °C	0.33 mm	Glass Filled Thermoplastic	1 mm	0.039 in	4		Surface Mount	Thermoplastic Glass Filled

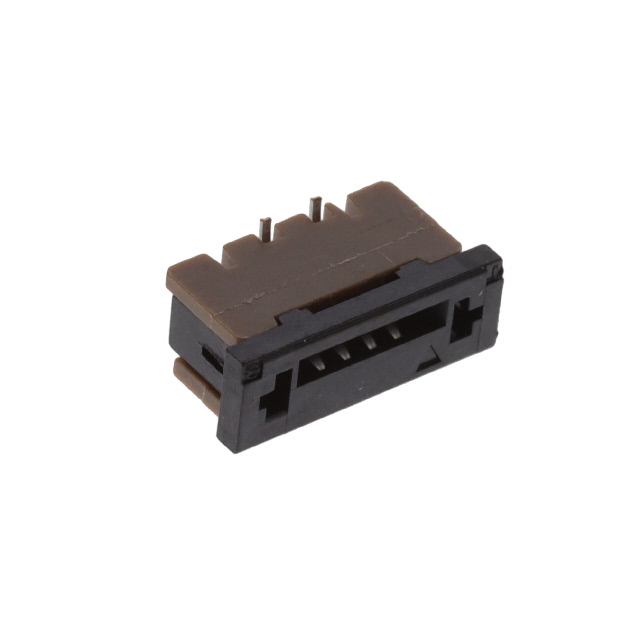

Amphenol ICC (FCI) SFW4S-2STE9LF	20	Brown	Tin	UL94 V-0	100 V	FFC FPC	Phosphor Bronze	Contacts Vertical - 1 Sided	Solder	0.209 in	5.3 mm	-55 C	85 °C		Glass Filled Thermoplastic	1 mm	0.039 in	4	Slide Lock	Surface Mount	Thermoplastic Glass Filled	Black	Straight Tapered		0.3 mm	0.33 mm
