2392771 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

6P, RAST 5 TAB HEADER, THV

Part	Shrouding	Number of Rows	Insulation Height	Insulation Height	Current Rating (Amps)	Fastening Type	Mounting Type	Material Flammability Rating	Termination	Features	Voltage Rating	Contact Material	Number of Positions	Style	Insulation Material	Contact Type	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection 7-2392771-6	Shrouded - 4 Wall	1	12.8 mm	0.504 in	20 A	Detent Lock	Through Hole	UL94 V-0	Solder	Board Guide Glow Wire Compliant	250 VAC	Copper Alloy	6	Board to Cable/Wire	Nylon Polyamide (PA)	Tab	Tin	78.7 µin	2 µm	Rectangular	5 mm	0.197 "	Header	2 çm	78.7 çin	All	Natural	3.5 mm	0.138 in	-40 °C	120 °C
TE Connectivity Raychem Cable Protection 2392771-2	Shrouded - 4 Wall	1	12.8 mm	0.504 in	20 A	Detent Lock	Through Hole	UL94 V-0	Solder	Board Guide Glow Wire Compliant	250 VAC	Copper Alloy	2	Board to Cable/Wire	Nylon Polyamide (PA)	Tab	Tin	78.7 µin	2 µm	Rectangular	5 mm	0.197 "	Header	2 çm	78.7 çin	All	Natural	3.5 mm	0.138 in	-40 °C	120 °C

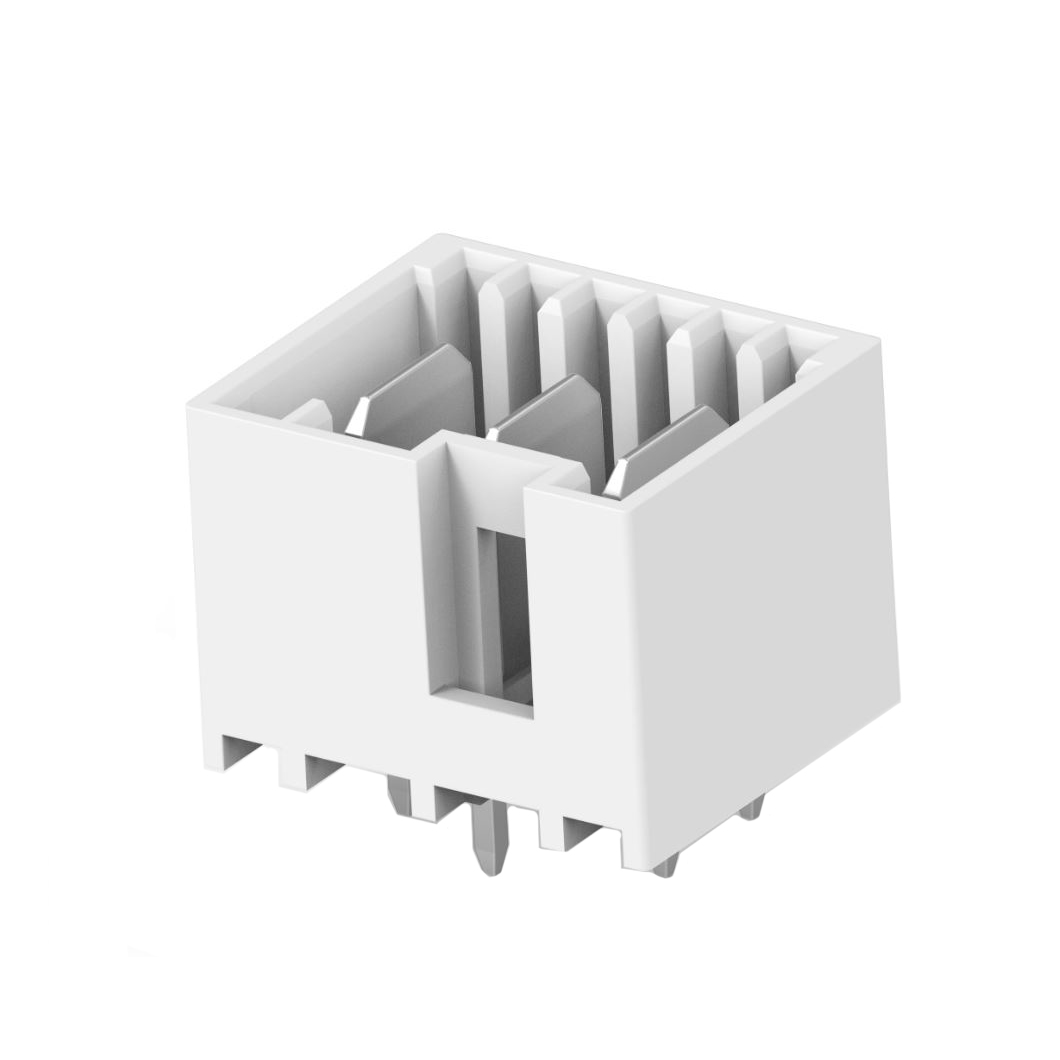

TE Connectivity Raychem Cable Protection 2392771-3	Shrouded - 4 Wall	1	12.8 mm	0.504 in	20 A	Detent Lock	Through Hole	UL94 V-0	Solder	Board Guide Glow Wire Compliant	250 VAC	Copper Alloy		Board to Cable/Wire	Nylon Polyamide (PA)	Tab	Tin	78.7 µin	2 µm	Rectangular	5 mm	0.197 "	Header	2 çm	78.7 çin	All	Natural	3.5 mm	0.138 in	-40 °C	120 °C

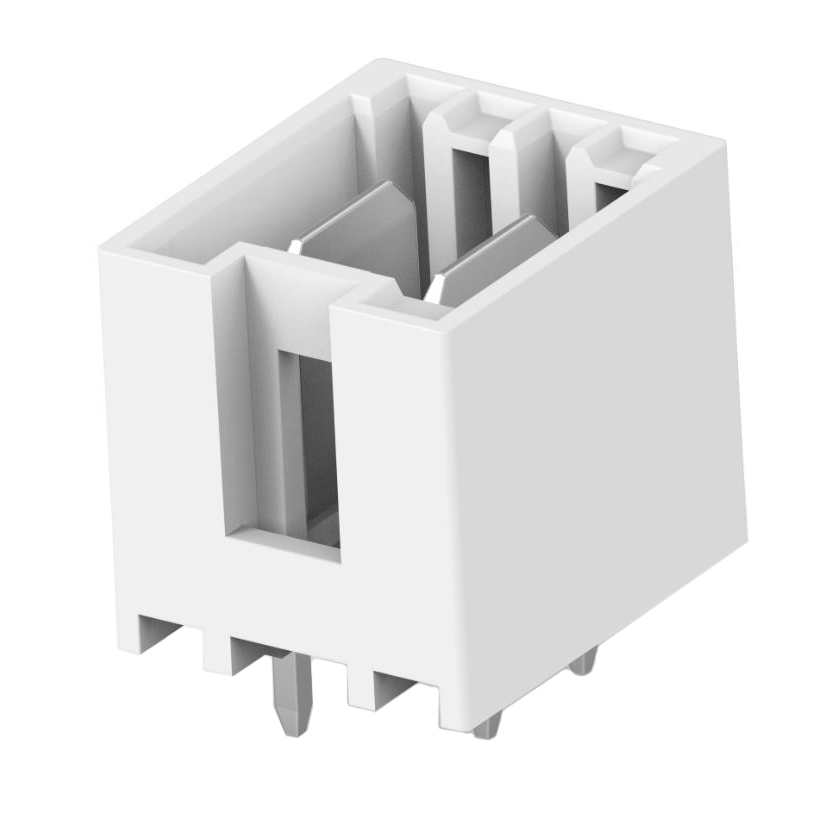

TE Connectivity Raychem Cable Protection 7-2392771-2	Shrouded - 4 Wall	1	12.8 mm	0.504 in	20 A	Detent Lock	Through Hole	UL94 V-0	Solder	Board Guide Glow Wire Compliant	250 VAC	Copper Alloy	2	Board to Cable/Wire	Nylon Polyamide (PA)	Tab	Tin	78.7 µin	2 µm	Rectangular	5 mm	0.197 "	Header	2 çm	78.7 çin	All	Natural	3.5 mm	0.138 in	-40 °C	120 °C
