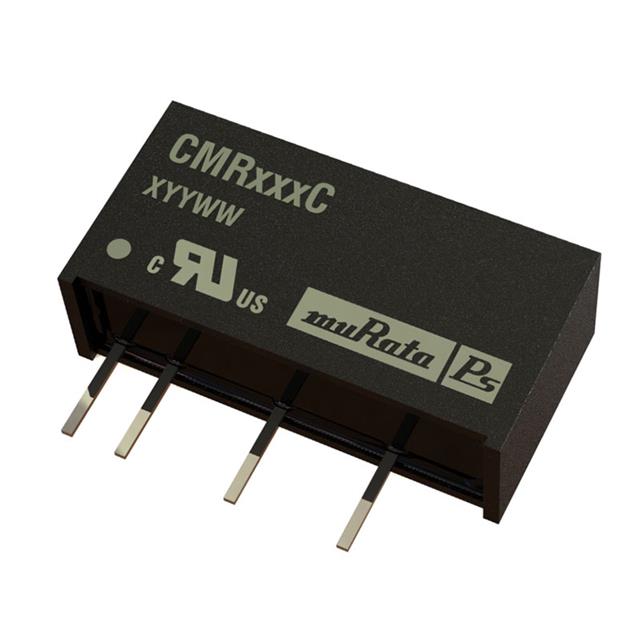

CMR1 Series
Manufacturer: Murata Electronics
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 750 MW, 1 OUTPUT, 5 V
| Part | Power (Watts) | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Voltage - Isolation | Current - Output (Max) [Max] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Package / Case | Type | Features | Mounting Type | Applications | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 0.75 W | 75.5 % | 85 °C | -40 C | 6 mm | 19.5 mm | 0.24 " | 0.39 " | 10 mm | 0.77 in | 4.5 V | 3000 V | 150 mA | 5 V | 5.5 V | 7-SIP Module 4 Leads | Isolated Module | SCP | Through Hole | ITE (Commercial) | 1 |
 Murata Electronics | 0.75 W | 69 % | 85 °C | -40 C | 6 mm | 19.5 mm | 0.24 " | 0.39 " | 10 mm | 0.77 in | 4.5 V | 1000 V | 150 mA | 5 V | 5.5 V | 7-SIP Module 4 Leads | Isolated Module | Through Hole | ITE (Commercial) | 1 |
