PPL200 Series
Manufacturer: Phihong USA
Beta
⌘K
AC/DC DESKTOP ADAPTER 48V 200W
| Part | Voltage - Output | Operating Temperature [Max] | Operating Temperature [Min] | Form | Power (Watts) | Approval Agency | Cord Length | Cord Length | Efficiency | Current - Output (Max) [Max] | Region Utilized | Input Connector | No Load Power Consumption | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Input Type | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

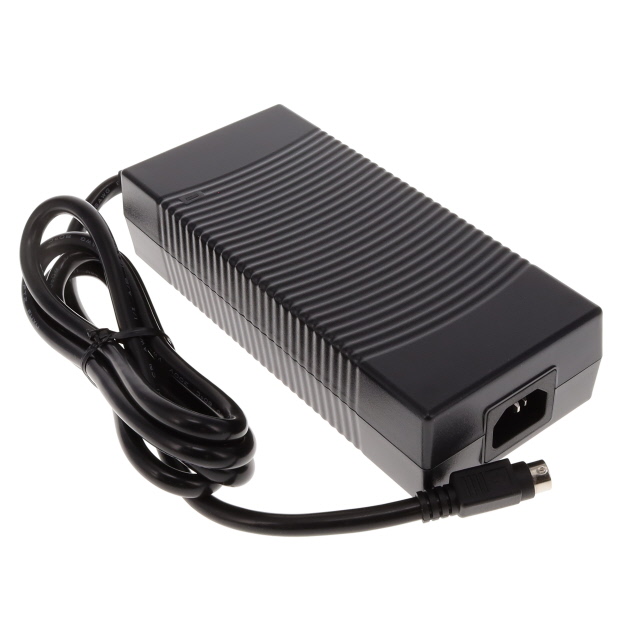

 Phihong USA | 48 V | 40 °C | 0 °C | Desktop (Class I) | 200 Watts | cULus IEC | 1.5 m | 59 in | CoC Tier 2 Level VI | 4.17 A | International | IEC 320-C14 | 150 mW | 264 VAC | 90 VAC | ITE (Commercial) | 1.67 in | 81 mm | 42.3 mm | 183.2 mm | 3.19 " | 7.21 in | Cord (Sold Separately) | Power DIN 4 Pin |

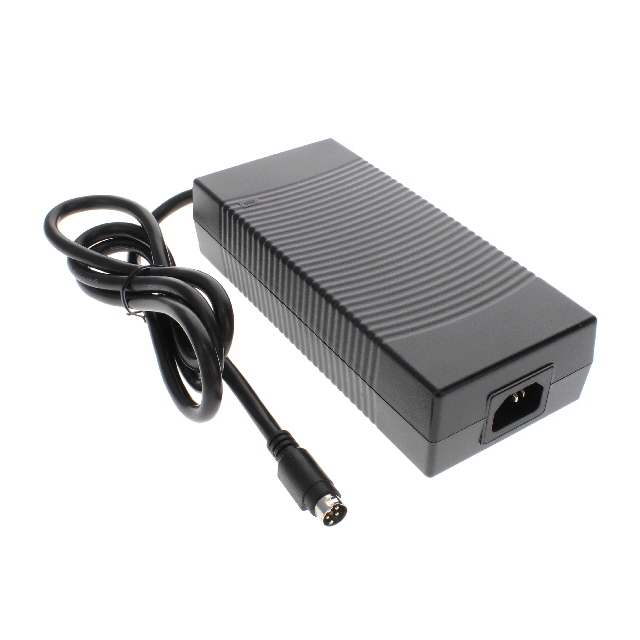

 Phihong USA | 12 V | 40 °C | 0 °C | Desktop (Class I) | 192 W | cULus IEC | 1.2 m | 47.2 in | CoC Tier 2 Level VI | 16 A | International | IEC 320-C14 | 150 mW | 264 VAC | 90 VAC | ITE (Commercial) | 1.67 in | 81 mm | 42.3 mm | 183.2 mm | 3.19 " | 7.21 in | Cord (Sold Separately) | Power DIN 4 Pin |

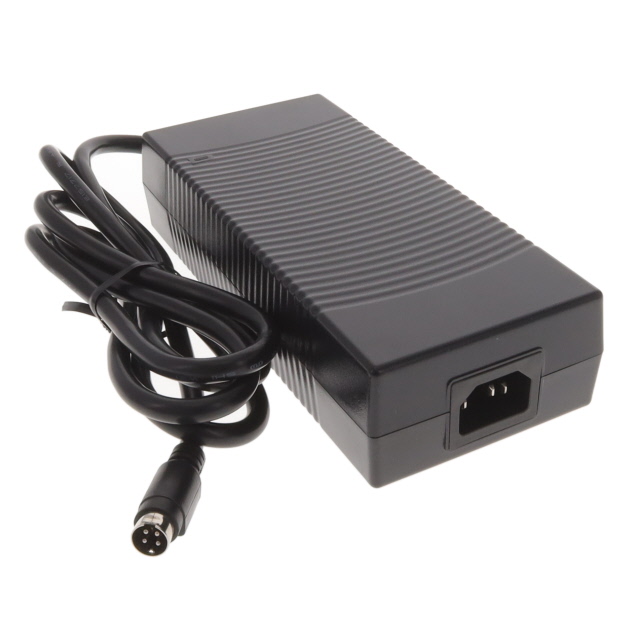

 Phihong USA | 24 V | 40 °C | 0 °C | Desktop (Class I) | 199 W | cULus IEC | 1.5 m | 59 in | CoC Tier 2 Level VI | 8.3 A | International | IEC 320-C14 | 150 mW | 264 VAC | 90 VAC | ITE (Commercial) | 1.67 in | 81 mm | 42.3 mm | 183.2 mm | 3.19 " | 7.21 in | Cord (Sold Separately) | Power DIN 4 Pin |
