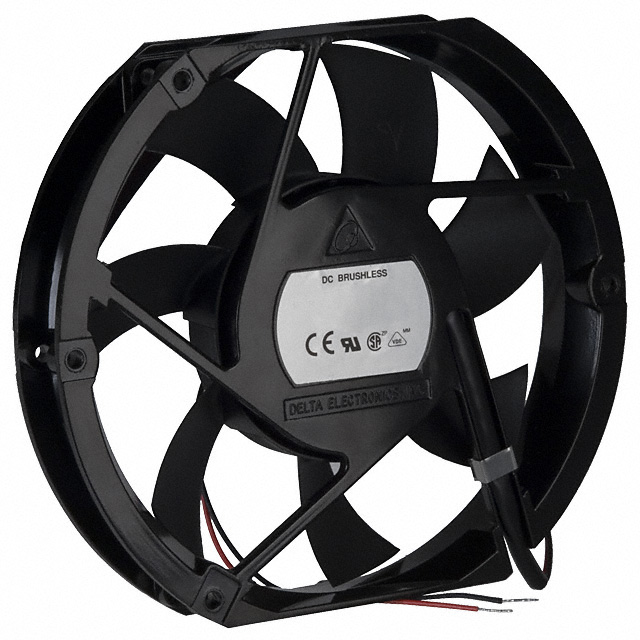

AFB1524 Series

Catalog

FAN AXIAL 172X25.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Static Pressure	Static Pressure	Termination	RPM	Air Flow	Air Flow	Approval Agency	Features	Noise	Voltage - Rated	Fan Type	Weight [custom]	Weight [custom]	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Bearing Type	Static Pressure
Delta Electronics AFB1524HH-AR00	12 VDC	30 V	Aluminum	Plastic	80000 Hrs	0.62 A	130.5 Pa	0.524 in H2O	3 Wire Leads	3200 RPM	214.9 CFM	6.02 m³/min	CE CSA UL VDE	Locked Rotor Sensor	53.5 dB	24 VDC	Tubeaxial	430.01 g	0.948 lb	Rectangular/Rounded	150 mm	172 mm	25.4 mm	70 °C	-10 °C	14.88 W	Ball
Delta Electronics AFB1524HH-A
Delta Electronics AFB1524EH-AR00	15.8	27.6 VDC	Aluminum	Plastic	80000 Hrs	1.6 A	204.5 Pa	0.821 in H2O	3 Wire Leads	4300 RPM	290.6 CFM	8.14 m³/min	CE CSA UL VDE	Locked Rotor Sensor	61.5 dB(A)	24 VDC	Tubeaxial	430.01 g	0.948 lb	Rectangular/Rounded	150 mm	172 mm	25.4 mm	70 °C	-10 °C	38.4 W	Ball
Delta Electronics AFB1524L-A	12 VDC	30 V	Aluminum	Plastic	80000 Hrs	0.31 A	0.305 in H2O		2 Wire Leads	2400 RPM	160.8 CFM	4.5 m³/min	CE CSA UL VDE		46 dB(A)	24 VDC	Tubeaxial	430.01 g	0.948 lb	Rectangular/Rounded	150 mm	172 mm	25.4 mm	70 °C	-10 °C	7.44 W	Ball	75.9 Pa
