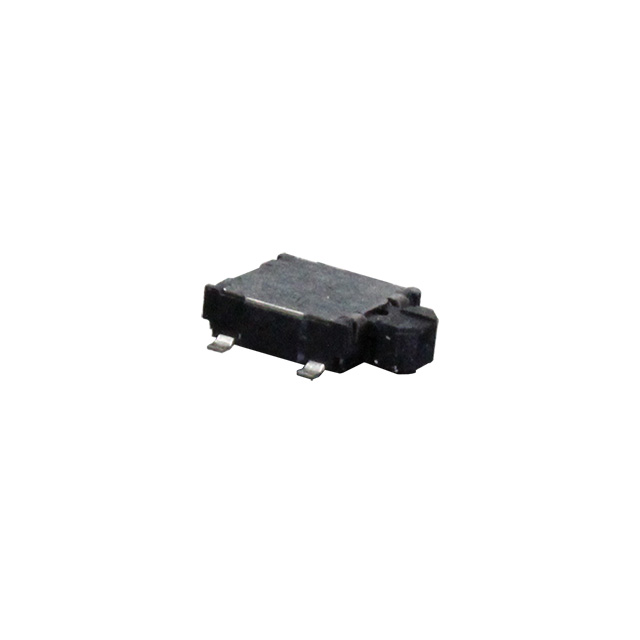

CS1218 Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Actuator Material | Contact Rating @ Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Actuator Orientation | Actuator Length, Right Angle [x] | Outline [y] | Outline [x] | Termination Style | Switch Function | Operating Force | Mounting Type | Illumination | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 0.35 mm | Liquid Crystal Polymer (LCP) | 0.05 A 12 VDC | 85 °C | -40 C | Rectangular Button | Side Actuated | 7.05 mm | 5 mm | 5.4 mm | Gull Wing | Off-Mom | 180 gf | Right Angle Surface Mount | Non-Illuminated | SPST-NO |
