ZC-Q2255 Series

Catalog

SWITCH SNAP ACTION SPDT 10A 125V

Part	Features	Termination Style	Mounting Type	Current Rating (Amps)	Operating Force	Ingress Protection	Circuit	Voltage Rating - DC	Electrical Life	Pretravel	Pretravel	Voltage Rating - AC	Differential Travel	Differential Travel	Actuator Type	Switch Function	Operating Position	Operating Position	Release Force	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel	Overtravel
Omron Automation and Safety ZC-Q2255-MD VCT 3M	Cable Length 3m	Cable Leads	Panel Mount	6 A 10 A	1200 gf	IP67 - Dust Tight Waterproof	SPDT	30 V	500000 Cycles	0.06 in	1.5 mm	125 V	0.2 mm	0.008 in	Roller Plunger	On-Mom	1.866 in	47.4 mm	500 gf	10000000 Cycles	-10 °C	80 °C	0.118 "	3 mm
Omron Automation and Safety ZC-Q2255-MD VCT 5M	Cable Length 5m	Cable Leads	Panel Mount	6 A 10 A	1200 gf	IP67 - Dust Tight Waterproof	SPDT	30 V	500000 Cycles	0.06 in	1.5 mm	125 V	0.2 mm	0.008 in	Roller Plunger	On-Mom	1.866 in	47.4 mm	500 gf	10000000 Cycles	-10 °C	80 °C	0.118 "	3 mm

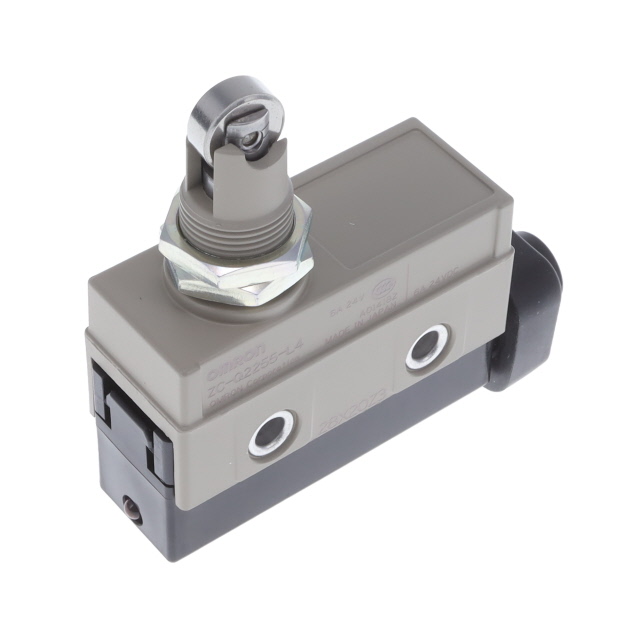

Omron Automation and Safety ZC-Q2255-L4	Status Indicator	Screw Terminal	Panel Mount	6 A 10 A	1200 gf	IP67 - Dust Tight Waterproof	SPDT	30 V	500000 Cycles	0.06 in	1.5 mm	125 V	0.2 mm	0.008 in	Roller Plunger	On-Mom	1.866 in	47.4 mm	500 gf	10000000 Cycles	-10 °C	80 °C	0.118 "	3 mm
Omron Automation and Safety ZC-Q2255-ML VCT 3M		Cable Leads	Panel Mount	6 A 10 A	1200 gf	IP67 - Dust Tight Waterproof	SPDT	30 V	500000 Cycles	0.06 in	1.5 mm	125 V	0.2 mm	0.008 in	Roller Plunger	On-Mom	1.866 in	47.4 mm	500 gf	10000000 Cycles	-10 °C	80 °C	0.118 "	3 mm
