Crd0 Series Series

Coded Rotary Switches 16POS R ANGLE,PC TRH 10mm DIP ROTARY SW 10 mm DIP Coded Rotary DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Coded Rotary Switches 16POS R ANGLE,PC TRH 10mm DIP ROTARY SW 10 mm DIP Coded Rotary DIP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Number of Positions	Mechanical Life	Termination Style	Body Material	Contact Material	Mounting Type	Circuit	Pitch [x]	Pitch	Pitch [x]	Features	Contact Finish	Actuator Type	Length	Length	Electrical Life	Voltage Rating	Height Above Board	Height Above Board	Number of Positions	Height Above Board [z]	Height Above Board [z]

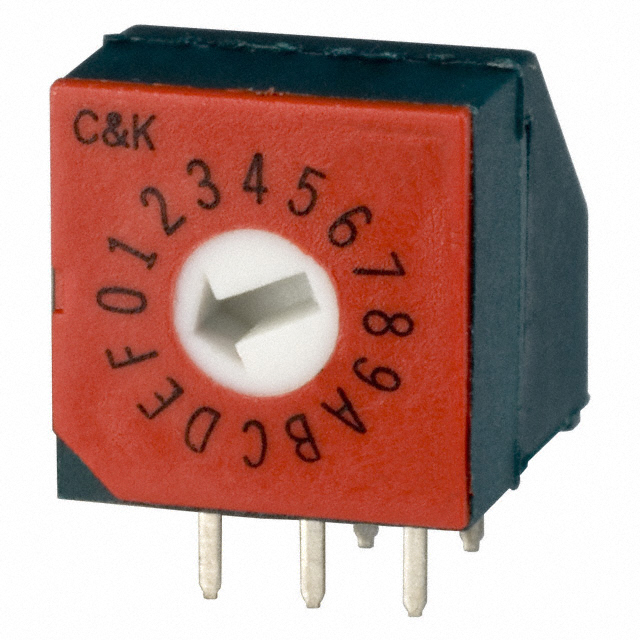

Littelfuse/Commercial Vehicle Products CRD16CM0AB	85 °C	-20 C	Flush Recessed	16	30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole Right Angle	Hexadecimal Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC	0.414 in	10.51 mm
Littelfuse/Commercial Vehicle Products CRD16CW1AB	85 °C	-20 C	Raised	16	30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole Right Angle	Hexadecimal Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary with Knob	10 mm	0.394 in	20000 Steps	20 VAC/DC	0.414 in	10.51 mm
Littelfuse/Commercial Vehicle Products CRD10CM0AB	85 °C	-20 C	Flush Recessed		30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole Right Angle	BCD Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC	0.414 in	10.51 mm	10
Littelfuse/Commercial Vehicle Products CRD16RM0SBR	85 °C	-20 C	Flush Recessed	16	30000 Steps	Gull Wing	Polyphenylene Sulfide (PPS)	Beryllium Copper	Surface Mount	Hexadecimal	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC				6.88 mm	0.271 in

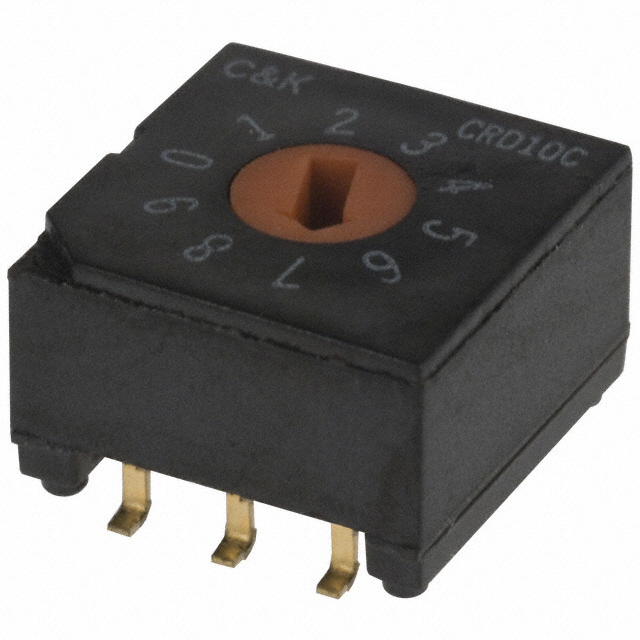

Littelfuse/Commercial Vehicle Products CRD10CM0SBR	85 °C	-20 C	Flush Recessed		30000 Steps	Gull Wing	Polyphenylene Sulfide (PPS)	Beryllium Copper	Surface Mount	BCD Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC			10	6.88 mm	0.271 in

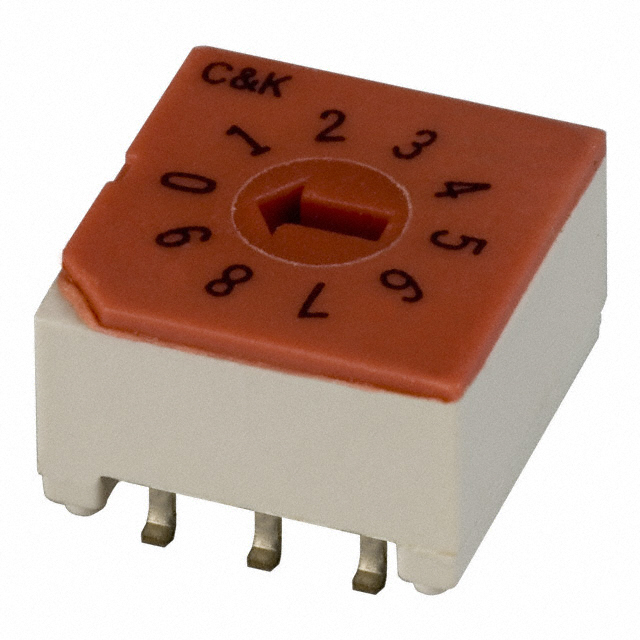

Littelfuse/Commercial Vehicle Products CRD10RM0SBR	85 °C	-20 C	Flush Recessed		30000 Steps	Gull Wing	Polyphenylene Sulfide (PPS)	Beryllium Copper	Surface Mount	BCD	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC			10	6.88 mm	0.271 in
Littelfuse/Commercial Vehicle Products CRD16CM0CB	85 °C	-20 C	Flush Recessed	16	30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole	Hexadecimal Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC	0.256 in	6.5 mm
Littelfuse/Commercial Vehicle Products CRD10CM0CB	85 °C	-20 C	Flush Recessed		30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole	BCD Complement	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC	0.256 in	6.5 mm	10
Littelfuse/Commercial Vehicle Products CRD16RL1CB	85 °C	-20 C	Raised	16	30000 Steps	PC Pin	Polyphenylene Sulfide (PPS)	Beryllium Copper	Through Hole	Hexadecimal	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary with Shaft	10 mm	0.394 in	20000 Steps	20 VAC/DC				13.8 mm	0.543 in

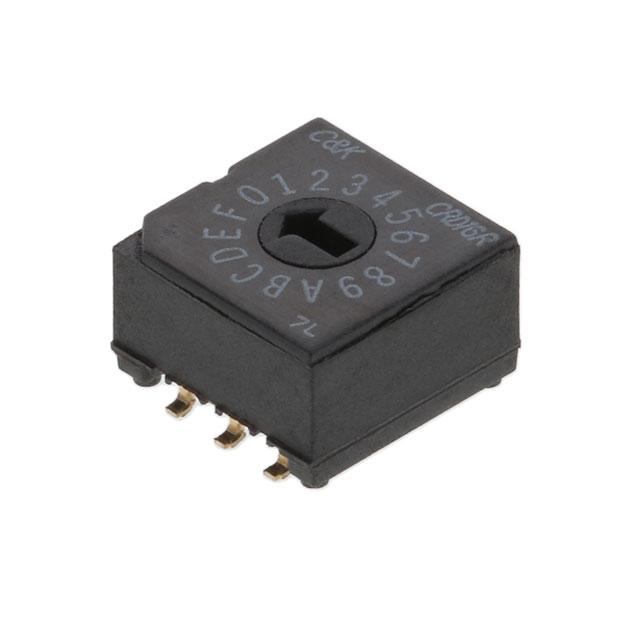

Littelfuse/Commercial Vehicle Products CRD16RM0SB	85 °C	-20 C	Flush Recessed	16	30000 Steps	Gull Wing	Polyphenylene Sulfide (PPS)	Beryllium Copper	Surface Mount	Hexadecimal	0.1 in	Full	2.54 mm	Process Sealed	Gold	Rotary for Tool	10 mm	0.394 in	20000 Steps	20 VAC/DC				6.88 mm	0.271 in

Catalog

Coded Rotary Switches 16POS R ANGLE,PC TRH 10mm DIP ROTARY SW 10 mm DIP Coded Rotary DIP

Key Features

• Process sealed – withstands soldering and cleaning

• Compact size saves space – 36% smaller than traditional 10mm DIP

Description

C&K’s CRD series 10mm DIP coded rotary DIP switch is process sealed to withstand soldering and cleaning, making them perfect for use in harsh environments. CRD switches are used in address switching applications, data storage devices and instrumentation and have a compact size to save space – in fact, they’re 36% smaller than traditional 10mm DIP switches.
