83553 Series
Manufacturer: Belden Inc.
Beta
⌘K

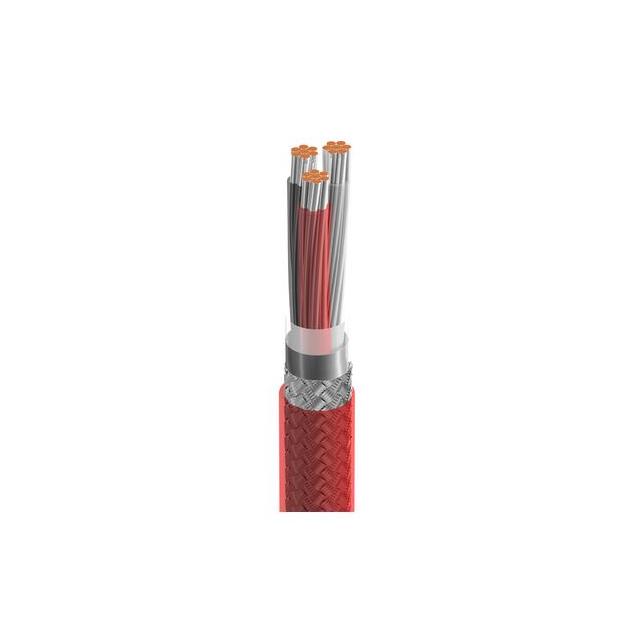

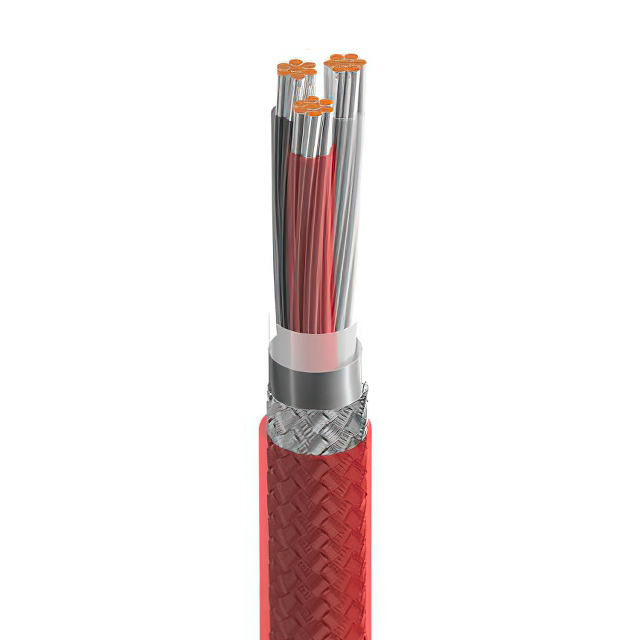

CABLE 3COND 22AWG RED SHLD
| Part | Shield Coverage | Shield Material | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Cable Type | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Shield Type | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 30 AWG | 7 | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | 3 | -70 °C | 200 °C | UL Style CMP | Copper Tinned | 3.76 mm | 0.148 " | 300 VDC | Multi-Conductor | Audio Control Instrumentation | 0.014 in | 0.356 mm | 304.8 m | 1000 ft | Braid Foil | Red |
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 30 AWG | 7 | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | 3 | -70 °C | 200 °C | UL Style CMP | Copper Tinned | 3.76 mm | 0.148 " | 300 VDC | Multi-Conductor | Audio Control Instrumentation | 0.014 in | 0.356 mm | Braid Foil | Red | ||
Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Fluorinated Ethylene-Propylene (FEP) | 30 AWG | 7 | 22 AWG | Fluorinated Ethylene-Propylene (FEP) Plenum | 3 | -70 °C | 200 °C | UL Style CMP | Copper Tinned | 3.76 mm | 0.148 " | 300 VDC | Multi-Conductor | Audio Control Instrumentation | 0.014 in | 0.356 mm | 152.4 m | 500 ft | Braid Foil | Red |
