37FBR1 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

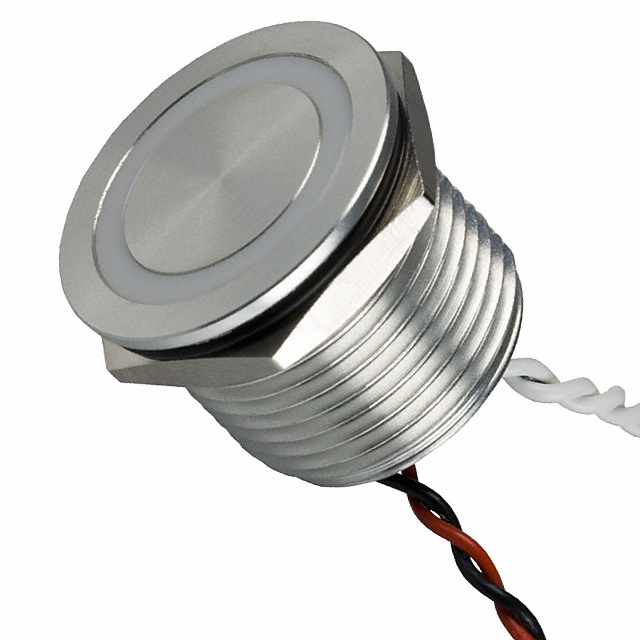

SWITCH PUSH SPST-NO 0.15A 24V
| Part | Mechanical Life | Electrical Life | Illumination Type, Color | Circuit | Termination Style | Voltage Rating - DC | Actuator Type | Type | Illumination Voltage (Nominal) | Switch Function | Actuator Marking | Ingress Protection | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Current Rating (Amps) | Features | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 50000000 Cycles | 50 000 000 | Green LED | SPST-NO | Wire Leads | 24 V | Button Flush Round | Piezo Anti-Vandal | 24 V | Off-Mom | No Marking | IP68 - Dust Tight Waterproof | Panel Mount Front | 85 °C | -40 C | 24 V | 150 mA | Sealed - Fully | Natural |
 Grayhill Inc. | 50000000 Cycles | 50 000 000 | LED Red | SPST-NO | Wire Leads | 24 V | Button Flush Round | Piezo Anti-Vandal | 12 VDC | Off-Mom | No Marking | IP68 - Dust Tight Waterproof | Panel Mount Front | 85 °C | -40 C | 24 V | 150 mA | Sealed - Fully | Natural |
