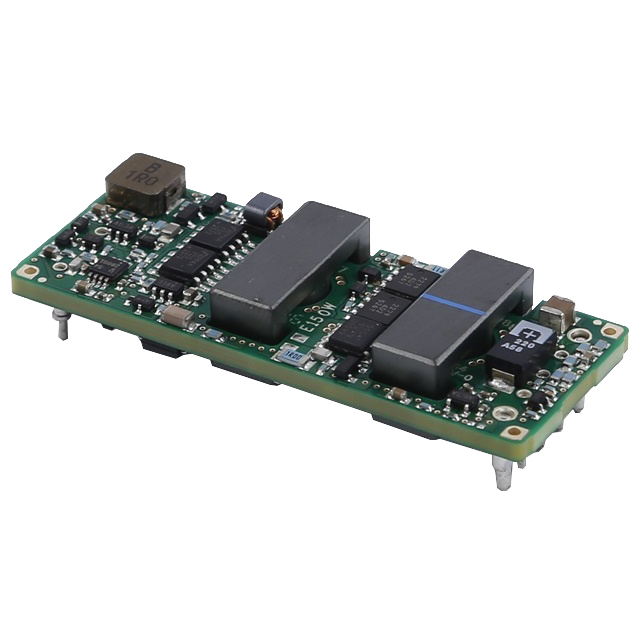

ERS3033 Series
Manufacturer: NetPower
Beta
⌘K
DC DC CONVERTER 3.3V 99W
| Part | Control Features | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Number of Outputs | Current - Output (Max) [Max] | Efficiency | Supplier Device Package | Package / Case | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | Active Low Enable | ITE (Commercial) | 2.3 in | 0.9 in | 0.39 " | 9.8 mm | 22.8 mm | 58.4 mm | 3.3 V | 18 V | Through Hole | 85 °C | -40 C | Isolated Module | 75 V | 2250 VDC | 1 | 30 A | 89 % | Eighth Brick | Eighth Brick | 99 W |
