7958A Series
Manufacturer: Belden Inc.
Beta
⌘K

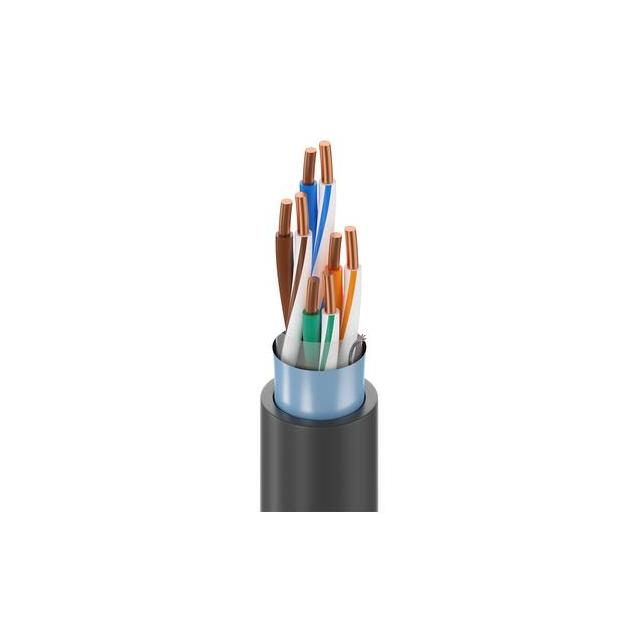

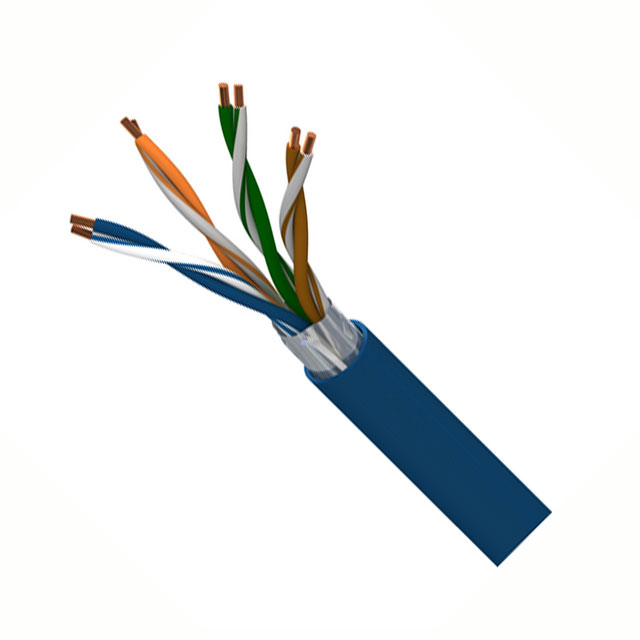

SHLD NETWORK CABLE, 4 PAIR, 24AWG, 305M
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Length | Length | Conductor Insulation | Conductor Insulation | Cable Type | Conductor Strand | Conductor Material | Features | Shield Type | Jacket Color | Usage | Length [x] | Length [x] | Ratings | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | Polyolefin | PO | Multi-Pair Cat5e | Solid | Copper Bare | Drain Wire Oil Resistant Rip Cord UV Resistant | Foil | Black | Network | 100 ft | 30.5 m | UL Style CMR | 24 AWG | 6.73 mm | 0.265 in | 8 | -40 C | 75 ░C | |||
 Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Polyolefin | PO | Multi-Pair Cat5e | Solid | Copper Bare | Oil Resistant UV Resistant | Foil | Blue | Industrial Network | UL Style 21047 | 24 AWG | 6.73 mm | 0.265 in | 8 | -40 C | 75 ░C | |||||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Polyolefin | PO | Multi-Pair Cat5e | Solid | Copper Bare | Oil Resistant UV Resistant | Foil | Black | Industrial Network | UL Style 21047 | 24 AWG | 6.73 mm | 0.265 in | 8 | -40 C | 75 ░C | 609.6 m | 2000 ft | Enter Number of Feet in Order Quantity | ||||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Polyolefin | PO | Multi-Pair Cat5e | Solid | Copper Bare | Oil Resistant UV Resistant | Foil | Gray | Industrial Network | UL Style 21047 | 24 AWG | 6.73 mm | 0.265 in | 8 | -40 C | 75 ░C | |||||
Belden Inc. | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Polyolefin | PO | Multi-Pair Cat5e | Solid | Copper Bare | Oil Resistant UV Resistant | Foil | Teal | Industrial Network | UL Style 21047 | 24 AWG | 6.73 mm | 0.265 in | 8 | -40 C | 75 ░C |
